Ground Rod Couplers | Bronze Ground Rod Threaded Couplers | Brass Earth Rod Couplers
Precision Ground Rod Couplers / Bronze & Brass Earth Rod Couplers
Overview – Ground Rod Couplers & Earth Rod Threaded Couplings
Rate: US$ 11.50/Kilogram, CIF USA port
We are one of the leading manufacturers and exporters of Ground Rod Couplers, Bronze Ground Rod Threaded Couplers, and Brass Earth Rod Couplers from India. We have been supplying earthing and grounding accessories to the world market for many decades, supporting utility companies, EPC contractors, electrical distributors, and infrastructure developers across the USA, Canada, the UK, Europe, Australia, and the Middle East. Our Ground Rod Couplers are engineered to deliver reliable electrical continuity, mechanical strength, and long-term corrosion resistance, even in harsh soil conditions and high-fault-current environments. Designed for standard 1/2”, 5/8”, and 3/4” UNC threaded grounding rods, these couplers play a critical role in achieving low earth resistance by enabling deeper rod installation. With three decades of export experience, robust process controls, and a technically strong engineering team, we supply both standard catalog couplers and fully customized solutions aligned with NEC, IEEE, and utility-specific grounding requirements. Our manufacturing philosophy emphasizes material integrity, precision threading, consistent conductivity, and dependable delivery, making us a trusted global source for Bronze and Brass Ground Rod Couplings.

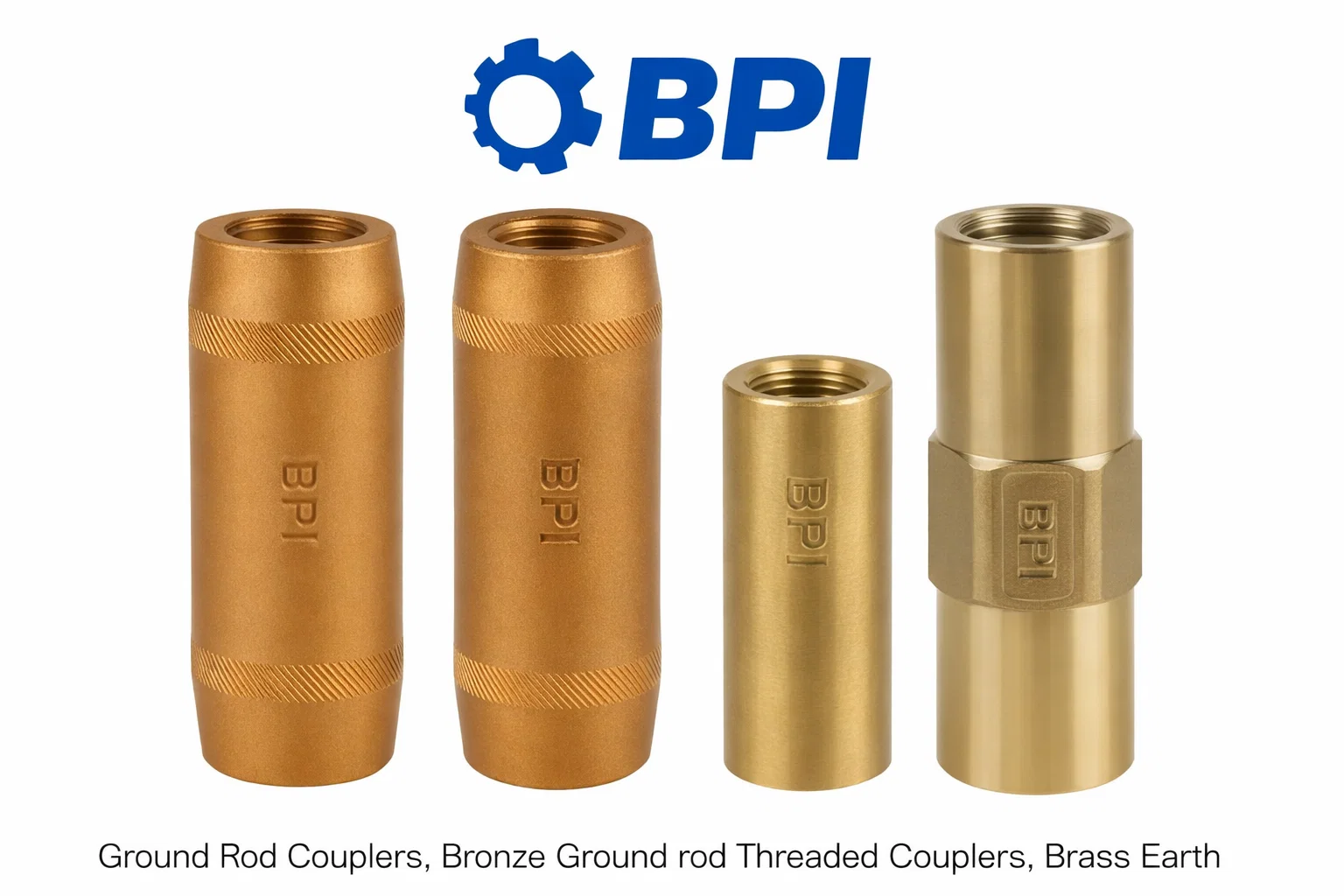

Ground Rod Couplers
Ground Rod Couplers are precision-machined threaded connectors used to join two or more grounding rods end-to-end, allowing installers to achieve greater soil depth for improved grounding efficiency. Manufactured primarily from Bronze and Brass, these couplers ensure uninterrupted electrical conductivity while maintaining mechanical alignment during driving and service life. They are widely used in substations, transmission towers, solar plants, data centers, and industrial earthing systems, where grounding reliability directly impacts safety and compliance. Ground rod couplers are essential connecting devices used in electrical grounding systems to join multiple grounding rods together, creating extended ground electrodes that reach deeper soil layers for improved conductivity. These couplers enable installers to achieve the required ground rod depth when dealing with challenging soil conditions or when regulations mandate longer electrode lengths than standard rod sizes. Manufactured from durable, corrosion-resistant materials, ground rod couplers maintain the electrical integrity of the grounding system while providing mechanical strength to withstand the driving forces during installation. They are designed with precision threading that ensures a secure, low-resistance connection between rod sections, eliminating potential weak points in the grounding path that could compromise system safety and performance.
Bronze Ground Rod Threaded Couplers Bronze ground rod threaded couplers represent a premium choice for grounding applications where superior corrosion resistance and long-term durability are paramount. The bronze alloy composition provides excellent resistance to galvanic corrosion, particularly in environments with high moisture content or chemical exposure, making these couplers ideal for coastal installations, industrial facilities, and areas with aggressive soil conditions. The precisely machined internal threads ensure a tight, secure fit with standard threaded grounding rods, creating a virtually seamless connection that maintains optimal electrical conductivity throughout the grounding system’s lifespan. Bronze couplers are particularly valued in telecommunications, power distribution, and lightning protection systems where reliability cannot be compromised, offering installers peace of mind that their grounding infrastructure will perform consistently even under demanding environmental conditions.
Brass Earth Rod Couplers: Brass earth rod couplers combine excellent electrical conductivity with outstanding corrosion resistance, making them a popular choice for residential, commercial, and industrial earthing applications. The brass construction provides a good balance between cost-effectiveness and performance, offering superior durability compared to standard steel couplers while maintaining lower material costs than some other copper alloys. These couplers feature precisely engineered threading that accommodates standard earth rod dimensions, ensuring compatibility across various manufacturer specifications and simplifying inventory management for electrical contractors. The natural antimicrobial properties of brass also help prevent biological corrosion in damp soil environments, while the material’s malleability allows for slight adjustments during installation without compromising structural integrity or electrical performance.
5/8″ Threaded Grounding Rod Couplers The 5/8″ threaded grounding rod coupler is the industry-standard size for most commercial and residential grounding applications, designed specifically to connect 5/8-inch diameter grounding rods that are widely used throughout North America and many international markets. These couplers feature UNC (Unified National Coarse) threading that matches the standard thread pattern on most commercially available grounding rods, ensuring universal compatibility and ease of installation. The 5/8″ size provides an optimal balance between mechanical strength and ease of driving, allowing installers to achieve depths of 20 feet or more when necessary by coupling multiple rod sections together. Available in various materials including copper-bonded steel, bronze, and brass, these couplers are engineered to maintain consistent electrical conductivity while withstanding the significant mechanical stress encountered during the rod-driving process.
Brass Earth Rod Couplers Brass earth rod couplers serve as reliable connectors in grounding systems where a combination of electrical performance, mechanical durability, and cost efficiency is required. These couplers are manufactured from high-quality brass alloys that resist dezincification and stress corrosion cracking, common failure modes in lower-grade materials exposed to soil chemicals and moisture. The excellent machinability of brass allows manufacturers to produce couplers with precise tolerances and smooth internal threads, resulting in easier rod assembly and reduced installation time for contractors. Brass couplers maintain stable contact resistance over time, ensuring that the grounding system continues to provide effective fault current dissipation and lightning protection throughout its service life, making them suitable for applications ranging from utility grounding to telecommunications tower earthing systems.
Bronze and Brass Couplings for Earth Rods and Ground Rods Bronze and brass couplings for earth rods and ground rods represent the premium tier of grounding connection solutions, offering superior performance characteristics that justify their use in critical infrastructure, sensitive electronic installations, and environments where grounding system failure could result in significant safety hazards or equipment damage. Both materials provide excellent electrical conductivity, typically ranging from 20% to 40% of pure copper’s conductivity, which is more than sufficient for effective grounding applications while offering enhanced mechanical properties. The choice between bronze and brass often depends on specific environmental factors—bronze typically offers better resistance to saltwater and marine environments, while brass provides excellent performance in most soil conditions at a slightly lower cost. These couplings are engineered with robust threading patterns and dimensional precision that ensure reliable connections capable of withstanding both the mechanical forces during installation and the electrical stresses during fault conditions, making them the preferred choice for utility companies, data centers, hospitals, and other facilities where grounding system reliability is non-negotiable.
Material Grades & International Equivalents
| Material | USA (ASTM / UNS) | Europe (EN / DIN) | UK (BS) | Japan (JIS) | China (GB) |
|---|---|---|---|---|---|
| Brass | C36000, C37700 | CW614N, CW617N | CZ121 | C3604 | HPb59-1 |
| Tin Bronze | C83600, C84400 | CuSn5Zn5Pb5 | LG2 | BC6 | ZCuSn5Pb5Zn5 |
| Aluminium Bronze | C95500, C95800 | CuAl10Ni5Fe4 | AB2 | CAC703 | ZCuAl10Ni5Fe4 |
Typical Properties (Indicative – Bronze C83600)
| Property | Value |
|---|---|
| Electrical Conductivity | ~20–25% IACS |
| Tensile Strength | 240–275 MPa |
| Corrosion Resistance | Excellent |
| Thread Wear Resistance | High |
Manufacturing Processes & Machinery Used
Ground Rod Couplers are manufactured using gravity die casting or hot-forged blanks, followed by CNC turning, precision threading (UNC), chamfering, and deburring. Final inspection includes thread gauges, dimensional checks, and visual surface evaluation. Machinery deployed includes CNC lathes, VMCs, tapping centers, band saws, hydraulic presses, and calibrated inspection instruments, ensuring repeatability and traceability across batches.
Typical Sizes & Dimensional Chart (UNC Threads)
| Thread Size | Typical Length (mm) | Across Flats (mm) | Application |
|---|---|---|---|
| 1/2” UNC | 38 – 50 | 17 – 19 | Light / commercial grounding |
| 5/8” UNC | 45 – 75 | 22 – 25 | Utility & standard USA grounding |
| 3/4” UNC | 50 – 80 | 27 – 30 | Heavy-duty / deep earthing |
Dimensional Tolerance: ±0.05 mm unless otherwise specified.
Plating & Surface Finish
Standard supply is natural Brass or Bronze finish. Optional finishes include Tin plating, Nickel plating, or customer-specified coatings to enhance corrosion resistance or meet project specifications.
Industries & Applications
Power utilities, substations, renewable energy (solar & wind), oil & gas facilities, data centers, railways, telecom towers, industrial plants, lightning protection systems, and commercial grounding installations.
Performance Metrics
Designed for low contact resistance, high mechanical pull strength, stable conductivity over long service life, and resistance to corrosion, vibration, and soil chemistry variations.
Turnaround Time
Standard production lead time is 4–6 weeks, including machining, inspection, and export packing.
Why Customers Choose Our Ground Rod Couplers
Customers choose us for our three decades of global export experience, responsive communication, consistent quality, and strong engineering support. We offer custom dimensions, flexible production scheduling, drawing optimization support, and private-label packaging, helping buyers reduce total project cost and risk.
Packaging & Shipping
Couplers are packed in export-grade cartons or wooden crates, with moisture protection. Customized packaging, barcoding, customer logos, and part numbers can be provided. Shipments are executed via sea or air freight as per customer timelines.
Typical Q & A (Ground Rod Couplers)
Q1. Are your Ground Rod Couplers NEC compliant?
Yes, our couplers are designed to align with NEC grounding practices and utility specifications.
Q2. What thread standards do you offer?
Standard supply is UNC; custom threads can be manufactured on request.
Q3. Are Bronze couplers better than Brass?
Bronze offers higher corrosion resistance, while Brass is cost-effective for general use.
Q4. Do you supply 5/8” Ground Rod Couplers for the USA market?
Yes, 5/8” UNC is our most common export size to the USA.
Q5. Can you customize length and flats?
Yes, customization is available as per drawings or samples.
Q6. Are your couplers suitable for Copper-bonded rods?
Yes, they are fully compatible.
Q7. What is the typical service life?
Designed for decades of service in normal soil conditions.
Q8. Do you provide test certificates?
Material test certificates can be supplied on request.
Q9. Can you support private labeling?
Yes, packaging and labeling can be customized.
Q10. What industries use these couplers most?
Utilities, renewables, data centers, and industrial plants.
Q11. Do you export regularly to the USA?
Yes, the USA is a key market for us.
Q12. Are Aluminium Bronze couplers available?
Yes, for high-corrosion or heavy-duty applications.
Q13. How is thread accuracy ensured?
Through calibrated thread gauges and in-process inspection.
Q14. What is the MOQ?
MOQ depends on size and material, typically flexible.
Q15. Can you suggest design improvements?
Yes, our engineering team routinely supports drawing optimization.
Customer Testimonials
Mark T., Texas, USA
“Excellent thread quality and consistent Bronze material. Their Ground Rod Couplers perform reliably in our utility grounding projects.”
David H., Ontario, Canada
“Professional communication, on-time delivery, and solid machining quality. A dependable long-term supplier.”
Glossary of Terms
Ground Rod: Conductive rod driven into soil to dissipate electrical energy
Earth Rod Coupler: Threaded connector joining grounding rods
UNC Thread: Unified National Coarse thread standard
Contact Resistance: Electrical resistance at mating surfaces
Dezincification: Corrosion mechanism affecting Brass in certain soils
Related Terms
Ground Rod Coupling, Earth Rod Threaded Coupler, 5/8” Grounding Rod Coupler, Bronze Earthing Accessories, Brass Grounding Hardware, NEC Grounding Components
