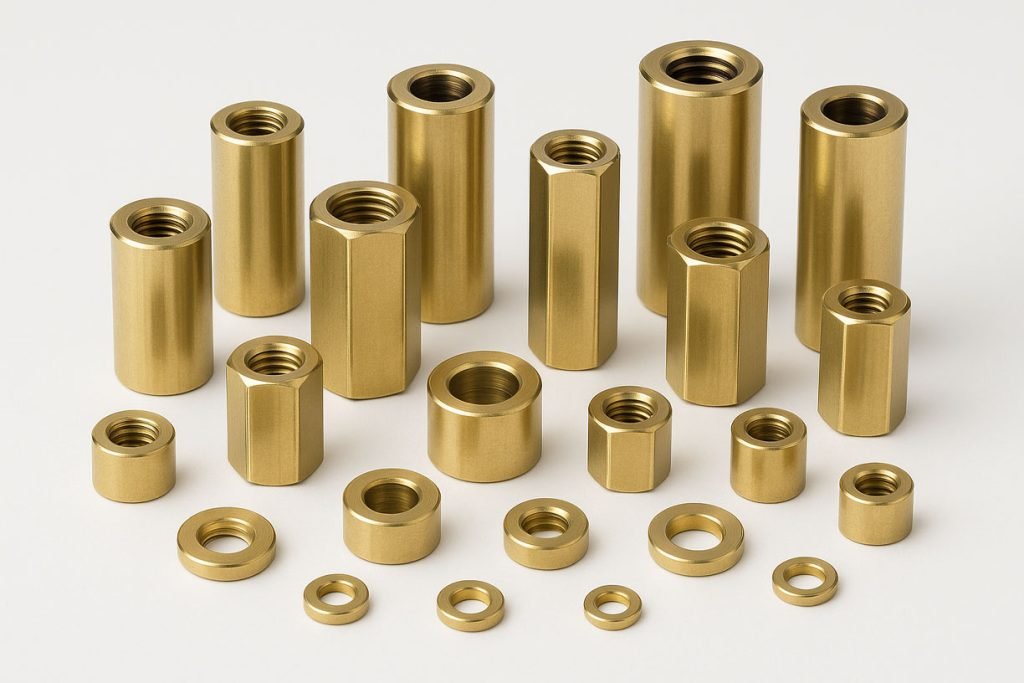

Brass Spacers Standoffs

Brass spacers and standoffs maintain a defined distance between components. Choose a clearance spacer, female-female standoff or male-female standoff to suit the assembly. Specify the alloy, body length, outside dimensions, thread size and depth, and finish. CZ121 is commonly cross-referenced to CW614N machining brass; it must not be confused with CZ112. Nickel plating is an option to be confirmed with the order.

Key Specifications

Material:

Brass grade to drawing; CZ121 / CW614N where specified

Finish:

Bright Nickel Plated

Thread Range:

M2 to M5

Spacer and standoff configurations

Clearance spacers have a through bore for a separate screw. Threaded standoffs provide internal or external threads and must match the mating fastener. Round and hexagonal bodies serve different access and assembly needs.

Dimensions to specify

State the finished spacing length, bore diameter or thread designation, thread engagement, body diameter or across-flats dimension, and end-face requirements. Include tolerances and coating allowances on the drawing. The M2–M5 range shown on this page is a catalogue reference; confirm the selected configuration and available size.

Assembly considerations

Allow adequate thread engagement without bottoming the screw in a blind hole. Determine tightening torque for the brass grade, wall thickness and mating parts. Brass is conductive; use an appropriate insulating spacer or isolating arrangement where electrical isolation is required.

Quotation requirements

Send a drawing or sample dimensions, quantity, alloy and finish requirements. Specify inspection records, packaging and any required material documentation. Screw-head standards such as DIN 7985 do not define standoff dimensions.

Frequently Asked Questions – Brass Spacers Standoffs

What is Brass Spacers Standoffs?

Brass Spacers Standoffs is a fastening component used in mechanical and electrical assemblies. Final suitability depends on the approved specification and application conditions.

Where is Brass Spacers Standoffs commonly used?

Typical applications include mechanical and electrical assemblies. Confirm load, environment, mating parts and applicable standards before selection.

Which materials are available for Brass Spacers Standoffs?

Specify brass or another drawing-specified alloy. State the exact grade because similar commercial alloys can differ in composition and performance.

Which sizes can be supplied for Brass Spacers Standoffs?

Standard and custom sizes can be reviewed from thread size, pitch, length, head or drive style and tolerance. Nominal size alone may not define compatibility.
