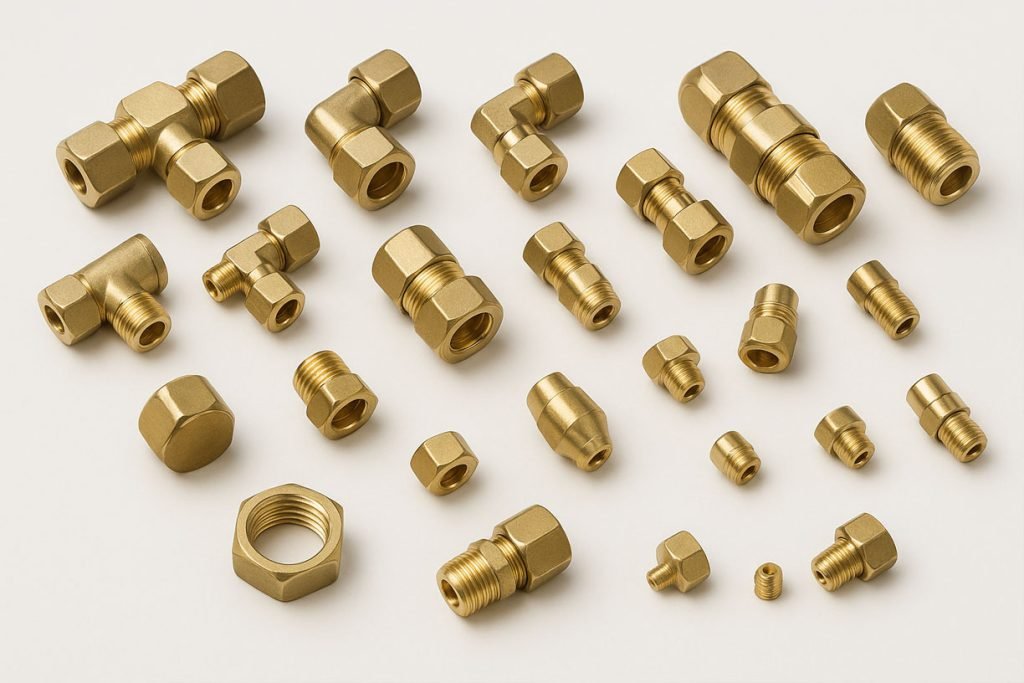

Brass Compression Fittings for Specified Tube Connections
Brass compression fittings connect compatible tubing using a nut and compression ring or ferrule. Select the complete fitting for the tube outside diameter, wall thickness, hardness, fluid and operating conditions. Compression joints and flare joints use different sealing arrangements. Matching nominal sizes or a similar appearance does not establish compatibility between fitting brands.
BS 2874/2872 Brass
2mm to 2" (25 sizes)
Natural, Chrome, Nickel
Use the body, nut and ferrules specified for the same fitting design. Do not mix Parker, Legris, Swagelok or other manufacturers’ components on the assumption that they are interchangeable. Confirm any proposed connection with the relevant manufacturer’s written instructions.
Specify the actual tube outside diameter, wall thickness and material. Metric tube sizes and inch tube sizes are separate series. For a threaded adapter, state the full thread designation and sealing arrangement: NPT, BSP taper and BSP parallel are distinct connections. Parallel threads generally need a separate seal; matching thread diameter alone is insufficient.
The allowable duty depends on the complete assembly, tubing, seals, installation and service conditions. Request the model-specific pressure-temperature rating and any required test documentation. Confirm the brass grade and applicable product approvals for potable water, gas or other regulated service.
Prepare the tube and assemble the fitting according to the selected design’s instructions. Use the prescribed insertion depth and tightening method; do not apply a generic torque or number of turns across all fitting types. Test the completed installation using the applicable procedure.
Provide a drawing or fitting configuration, tube details, thread designation, quantity, service fluid, pressure, temperature and finish. Material certification and inspection requirements should be agreed with the order.
Brass Compression Fittings is a pipe or tube fitting used in plumbing, process and instrumentation systems. Final suitability depends on the approved specification and application conditions.
Typical applications include plumbing, process and instrumentation systems. Confirm load, environment, mating parts and applicable standards before selection.
Specify brass, stainless steel or another compatible alloy. State the exact grade because similar commercial alloys can differ in composition and performance.
Standard and custom sizes can be reviewed from pipe or tube size, thread, seal type and pressure class. Nominal size alone may not define compatibility.
Provide pipe or tube size, thread, seal type and pressure class, with units, tolerances and drawing revision.
Yes. Custom geometry, threads, tolerances and features can be assessed from a dimensioned drawing or approved sample.
Relevant Metric, BSP, BSPT, NPT, NPTF, PG, BA or BSW threads may be considered. Specify form, size, pitch, class and engagement length.
Options may include natural, plated, polished or passivated. Specify coating type, thickness, appearance and corrosion or conductivity needs.
Tolerance depends on material, size, geometry and process. Mark critical dimensions and fits clearly on the drawing.
Check mating dimensions, orientation, sealing or retention method and specified tightening torque before use.
Inspection can cover material identity, critical dimensions, threads, finish and drawing-specific functional checks.
Material certificates, dimensional reports and coating or test records can be agreed at quotation stage.
Prototype or pre-production samples can be reviewed for new custom parts, subject to tooling and material requirements.
Minimum quantity and lead time vary with material, size, tooling, finish, inspection and order volume.
Provide the drawing or specification, material, dimensions, tolerances, finish, quantity, inspection, packing and destination.
