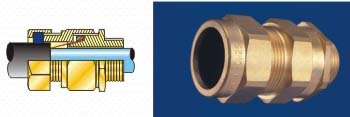

CW Brass Cable Glands

Engineered for demanding outdoor environments, our CW Brass Cable Glands are manufactured in compliance with BS 6121 standards, making them the ideal solution for single wire armoured (SWA) cables with plastic or rubber sheathing. Specifically designed to withstand harsh climatic conditions, these glands provide superior environmental protection with advanced weatherproof and waterproof capabilities for reliable outdoor installations.

Features

The innovative design features an outer seal that grips the cable sheath securely, providing exceptional environmental protection against moisture, dust, and extreme weather conditions. Equipped with separate armour lock rings for enhanced mechanical strength and electrical continuity, these glands ensure reliable performance in the most challenging outdoor applications. Optional integral earth facility enhances grounding performance, while the robust brass construction delivers superior corrosion resistance and long-term durability in marine and industrial environments.

Specification

Gland Size:

20mm to 75mm (S & L)

IP Rating:

IP 66

Frequently Asked Questions – CW Brass Cable Glands

What is CW Brass Cable Glands?

CW Brass Cable Glands is an industrial cable accessory made for cable entry, termination, protection and electrical installation work. The exact construction, material and dimensions should be selected from the product specification or approved customer drawing.

What are the common applications of CW Brass Cable Glands?

Typical uses include cable entry, termination, protection and electrical installation work. Suitability should be confirmed against the actual load, environment, mating parts and applicable industry requirements.

Which materials are available for CW Brass Cable Glands?

Material can be specified as brass, copper and compatible sealing or insulating materials as required by the design. State the exact grade on the enquiry because similar commercial grades can differ in composition and performance.

Which sizes can be supplied for CW Brass Cable Glands?

Standard and custom sizes can be reviewed. Provide cable diameter, entry thread, mating dimensions and installation space so the correct size and manufacturing route can be confirmed.

What dimensions are needed to order CW Brass Cable Glands?

Send cable diameter, entry thread, mating dimensions and installation space. A dimensioned drawing with units, tolerances and revision number is the clearest basis for quotation and inspection.

Can CW Brass Cable Glands be manufactured to a custom drawing?

Yes. Custom geometry, threads, tolerances and features can be assessed from a drawing or clearly dimensioned sample. Feasibility is confirmed before production.

Which thread standards are available for CW Brass Cable Glands?

Metric, BSP, BSPT, NPT, NPTF, PG, BA, BSW or other thread forms may be considered where relevant. Specify the thread standard, size, pitch, class and engagement length rather than only a nominal diameter.

Which surface finishes are offered for CW Brass Cable Glands?

Available options may include natural, nickel-plated or other specified protective finishes. Specify coating type, thickness, colour or appearance standard and any corrosion or conductivity requirement.

What tolerances can be maintained on CW Brass Cable Glands?

Tolerances depend on material, size, geometry and process. Mark critical dimensions and fits on the drawing; tighter tolerances should be applied only where function requires them.

How should CW Brass Cable Glands be installed or assembled?

Confirm cable size, mating thread, sealing arrangement and tightening method before installation. Installation should be completed by qualified personnel using the relevant equipment and safety procedure.

How is the quality of CW Brass Cable Glands checked?

Inspection can cover material identity, critical dimensions, threads, visual finish and any drawing-specific functional checks. Sampling level and acceptance criteria should be agreed with the order.

What inspection documents are available for CW Brass Cable Glands?

Material certificates, dimensional inspection reports, coating reports or other requested records can be discussed at quotation stage. Required documents must be listed before production.

Are prototypes or pre-production samples available for CW Brass Cable Glands?

Prototype or sample quantities can be reviewed for new custom parts. Approval criteria, tooling needs, sample quantity and any production-intent material should be agreed in advance.

What are the minimum order quantity and lead time for CW Brass Cable Glands?

Minimum quantity and lead time vary with size, material, tooling, finish, inspection and order volume. They are confirmed after the complete technical requirement is reviewed.

What information is needed for a CW Brass Cable Glands quotation?

Provide the drawing or specification, material grade, dimensions, tolerances, finish, quantity, inspection needs, packing requirements and delivery destination for an accurate quotation.
