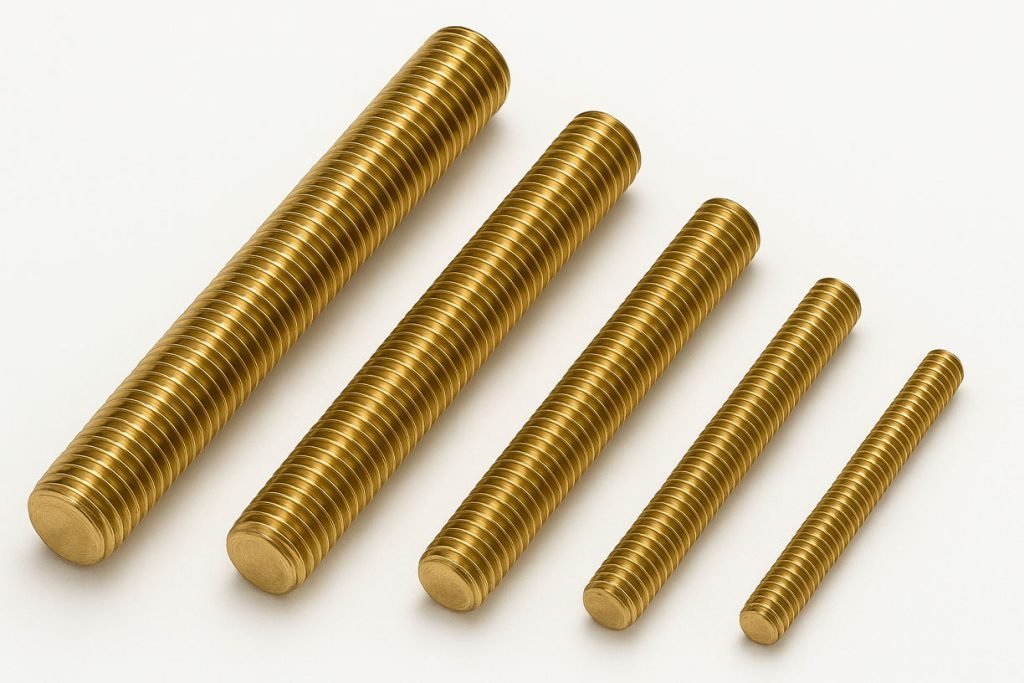

Brass Studs Threaded Rods All Thread

Brass studs and threaded rods provide externally threaded connections for mechanical and electrical assemblies. Specify whether the part is fully threaded, double-ended or has a plain shank. State the alloy, diameter, thread pitch, length, end form and finish. Threaded rods, studs and foundation bolts are different product forms and must use the appropriate drawing or dimensional standard.

Key Specifications

Standards:

Applicable dimensional standard or approved drawing

Thread Size:

5mm to 36mm

Length Range:

Up to 1.5 meters

Thread and length specification

Specify the complete thread designation, tolerance class, overall length and threaded lengths. Metric, UNC, UNF and Whitworth thread forms are distinct. Confirm end chamfers, straightness and any unthreaded sections on the drawing.

Standards and material

DIN 975 is a withdrawn legacy threaded-rod reference and is not intended for new designs. Select the applicable current dimensional specification or an approved drawing. Do not apply a foundation-bolt reference to every stud. Specify brass grade and condition separately; steel fastener property classes do not establish brass strength.

Assembly performance

Determine thread engagement, tightening torque and allowable load for the brass grade, mating material and complete joint. Electrical conductivity alone does not establish a current rating for an assembled connection. Use an appropriate locking method where required by the design.

Ordering information

Send the part drawing, material requirement, thread designation, quantity, finish and inspection criteria. Confirm available lengths and diameters, packaging, material documentation and delivery with the quotation.

Frequently Asked Questions – Brass Studs Threaded Rods All Thread

What is Brass Studs Threaded Rods All Thread?

Brass Studs Threaded Rods All Thread is a fastening component used in mechanical and electrical assemblies. Final suitability depends on the approved specification and application conditions.

Where is Brass Studs Threaded Rods All Thread commonly used?

Typical applications include mechanical and electrical assemblies. Confirm load, environment, mating parts and applicable standards before selection.

Which materials are available for Brass Studs Threaded Rods All Thread?

Specify brass or another drawing-specified alloy. State the exact grade because similar commercial alloys can differ in composition and performance.

Which sizes can be supplied for Brass Studs Threaded Rods All Thread?

Standard and custom sizes can be reviewed from thread size, pitch, length, head or drive style and tolerance. Nominal size alone may not define compatibility.
