Comprehensive Range of Electrical Conduit Fittings
Engineered for reliable electrical conduit installations, our comprehensive range of Conduit Fittings provides professional solutions for connecting flexible and rigid conduits. Manufactured from high-quality brass conforming to BS 2874 standards, these precision fittings offer superior corrosion resistance and mechanical strength for diverse electrical applications. Available in metric, PG, and imperial threading systems to serve global installation requirements.
Brass to BS 2874
Metric, PG, Imperial
Nickel Plated & Natural

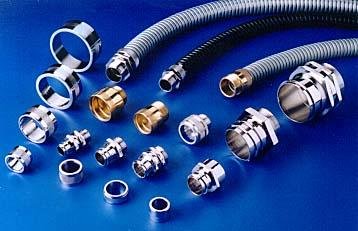

High-quality brass connectors and adaptors manufactured to BS 2874 standards with nickel plated finish for enhanced corrosion resistance. Available in both male and female configurations with metric, PG, and imperial threading systems. These precision fittings provide reliable connections between flexible and rigid conduits in electrical installations.
Two-piece nickel plated connectors suitable for PVC and steel conduits, available in both fixed and swivel configurations. Manufactured from brass to BS 2874 standards with natural brass finish. Available in metric (20mm to 50mm) and imperial (3/4″ to 2″) sizes in both short and long patterns.
| Flexible Conduit | Rigid Conduit | Fixed Code | Swivel Code | |
|---|---|---|---|---|
| 12mm | x | 16mm | CF 12 | CS 12 |
| 16mm | x | 20mm | CF 13 | CS 13 |
| 20mm | x | 20mm | CF 14 | CS 14 |
| 25mm | x | 25mm | CF 15 | CS 15 |
| 32mm | x | 32mm | CF 16 | CS 16 |
| 40mm | x | 40mm | CF 17 | CS 17 |
| 50mm | x | 50mm | CF 18 | CS 18 |
One-piece brass adaptors suitable for steel and PVC conduits, providing reliable connections between flexible and rigid conduit systems. These precision-manufactured adaptors ensure secure fitting and long-term performance in electrical installations.
| Flexible Conduit | Rigid Conduit | Code No. | ||
|---|---|---|---|---|
| 5/8″ | (16mm) | 3/4″ | (20mm) | CA 12 |
| 3/4″ | (20mm) | 3/4″ | (20mm) | CA 13 |
| 3/4″ | (20mm) | 1″ | (25mm) | CA 14 |
| 1″ | (25mm) | 1″ | (25mm) | CA 15 |
| 1 1/4″ | (32mm) | 1 1/4″ | (32mm) | CA 16 |
| 1 1/2″ | (40mm) | 1 1/2″ | (40mm) | CA 17 |
| 2″ | (50mm) | 2″ | (50mm) | CA 18 |
Specialized angular fittings designed for liquid tight, spiral, and pliable conduit applications. These precision-engineered fittings provide reliable directional changes in conduit runs while maintaining environmental protection and mechanical integrity. Essential for complex routing requirements in industrial and commercial electrical installations.
Conduit Fittings is an industrial cable accessory made for cable entry, termination, protection and electrical installation work. The exact construction, material and dimensions should be selected from the product specification or approved customer drawing.
Typical uses include cable entry, termination, protection and electrical installation work. Suitability should be confirmed against the actual load, environment, mating parts and applicable industry requirements.
Material can be specified as brass, copper and compatible sealing or insulating materials as required by the design. State the exact grade on the enquiry because similar commercial grades can differ in composition and performance.
Standard and custom sizes can be reviewed. Provide cable diameter, entry thread, mating dimensions and installation space so the correct size and manufacturing route can be confirmed.
Send cable diameter, entry thread, mating dimensions and installation space. A dimensioned drawing with units, tolerances and revision number is the clearest basis for quotation and inspection.
Yes. Custom geometry, threads, tolerances and features can be assessed from a drawing or clearly dimensioned sample. Feasibility is confirmed before production.
Metric, BSP, BSPT, NPT, NPTF, PG, BA, BSW or other thread forms may be considered where relevant. Specify the thread standard, size, pitch, class and engagement length rather than only a nominal diameter.
Available options may include natural, nickel-plated or other specified protective finishes. Specify coating type, thickness, colour or appearance standard and any corrosion or conductivity requirement.
Tolerances depend on material, size, geometry and process. Mark critical dimensions and fits on the drawing; tighter tolerances should be applied only where function requires them.
Confirm cable size, mating thread, sealing arrangement and tightening method before installation. Installation should be completed by qualified personnel using the relevant equipment and safety procedure.
Inspection can cover material identity, critical dimensions, threads, visual finish and any drawing-specific functional checks. Sampling level and acceptance criteria should be agreed with the order.
Material certificates, dimensional inspection reports, coating reports or other requested records can be discussed at quotation stage. Required documents must be listed before production.
Prototype or sample quantities can be reviewed for new custom parts. Approval criteria, tooling needs, sample quantity and any production-intent material should be agreed in advance.
Minimum quantity and lead time vary with size, material, tooling, finish, inspection and order volume. They are confirmed after the complete technical requirement is reviewed.
Provide the drawing or specification, material grade, dimensions, tolerances, finish, quantity, inspection needs, packing requirements and delivery destination for an accurate quotation.
