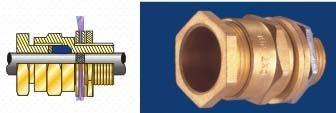

CXT Type Cable Glands

Engineered specifically for flexible braided cable applications, our CXT Type Cable Glands are manufactured in strict compliance with BS 6121 Part 1, making them the ideal solution for CY, YY, and SY cable types. These specialized glands provide exceptional sealing on the outer sheath while ensuring secure clamping of the wire braid, delivering superior electrical continuity and mechanical protection for sensitive control and instrumentation applications.

Features

The innovative design features a dual-function sealing and clamping system that provides reliable environmental protection on the cable’s outer sheath while maintaining optimal electrical continuity through secure wire braid clamping. This specialized construction ensures excellent EMC performance and signal integrity, making these glands essential for control systems, instrumentation, and data transmission applications. Available in both brass and aluminium construction to meet diverse environmental and application requirements.

Specification

Gland Size:

20mm to 50mm

Material:

Brass & Aluminium

IP Rating:

IP 66

Frequently Asked Questions – CXT Type Cable Glands

What is CXT Type Cable Glands?

CXT Type Cable Glands is an industrial cable accessory made for cable entry, termination, protection and electrical installation work. The exact construction, material and dimensions should be selected from the product specification or approved customer drawing.

What are the common applications of CXT Type Cable Glands?

Typical uses include cable entry, termination, protection and electrical installation work. Suitability should be confirmed against the actual load, environment, mating parts and applicable industry requirements.

Which materials are available for CXT Type Cable Glands?

Material can be specified as brass, copper and compatible sealing or insulating materials as required by the design. State the exact grade on the enquiry because similar commercial grades can differ in composition and performance.

Which sizes can be supplied for CXT Type Cable Glands?

Standard and custom sizes can be reviewed. Provide cable diameter, entry thread, mating dimensions and installation space so the correct size and manufacturing route can be confirmed.

What dimensions are needed to order CXT Type Cable Glands?

Send cable diameter, entry thread, mating dimensions and installation space. A dimensioned drawing with units, tolerances and revision number is the clearest basis for quotation and inspection.

Can CXT Type Cable Glands be manufactured to a custom drawing?

Yes. Custom geometry, threads, tolerances and features can be assessed from a drawing or clearly dimensioned sample. Feasibility is confirmed before production.

Which thread standards are available for CXT Type Cable Glands?

Metric, BSP, BSPT, NPT, NPTF, PG, BA, BSW or other thread forms may be considered where relevant. Specify the thread standard, size, pitch, class and engagement length rather than only a nominal diameter.

Which surface finishes are offered for CXT Type Cable Glands?

Available options may include natural, nickel-plated or other specified protective finishes. Specify coating type, thickness, colour or appearance standard and any corrosion or conductivity requirement.

What tolerances can be maintained on CXT Type Cable Glands?

Tolerances depend on material, size, geometry and process. Mark critical dimensions and fits on the drawing; tighter tolerances should be applied only where function requires them.

How should CXT Type Cable Glands be installed or assembled?

Confirm cable size, mating thread, sealing arrangement and tightening method before installation. Installation should be completed by qualified personnel using the relevant equipment and safety procedure.

How is the quality of CXT Type Cable Glands checked?

Inspection can cover material identity, critical dimensions, threads, visual finish and any drawing-specific functional checks. Sampling level and acceptance criteria should be agreed with the order.

What inspection documents are available for CXT Type Cable Glands?

Material certificates, dimensional inspection reports, coating reports or other requested records can be discussed at quotation stage. Required documents must be listed before production.

Are prototypes or pre-production samples available for CXT Type Cable Glands?

Prototype or sample quantities can be reviewed for new custom parts. Approval criteria, tooling needs, sample quantity and any production-intent material should be agreed in advance.

What are the minimum order quantity and lead time for CXT Type Cable Glands?

Minimum quantity and lead time vary with size, material, tooling, finish, inspection and order volume. They are confirmed after the complete technical requirement is reviewed.

What information is needed for a CXT Type Cable Glands quotation?

Provide the drawing or specification, material grade, dimensions, tolerances, finish, quantity, inspection needs, packing requirements and delivery destination for an accurate quotation.
