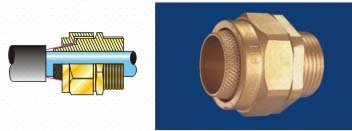

BW 3 Part Brass Cable Glands

Engineered for demanding applications, our BW 3 Part Brass Cable Glands are manufactured in strict compliance with BS 6212 Part 1, making them the ideal choice for single wire armoured (SWA) cables with plastic or rubber sheathing. Designed specifically for indoor environments, these glands provide exceptional cable termination performance with enhanced mechanical protection and superior sealing capabilities.

Features

The innovative three-part construction features a separate locking ring that ensures proper armour clamping, providing enhanced mechanical strength and electrical continuity. This design allows for precise cable termination with improved strain relief and superior environmental protection. Optional integral earth facility enhances grounding performance, while the robust brass construction delivers excellent corrosion resistance and long-term reliability in industrial applications.

Specification

Gland Size:

20mm to 75mm (S & L)

IP Rating:

IP 54

Technical FAQ – BW 3 Part Brass Cable Glands

Which material should be specified?

Specify the brass alloy and finish on the order. CW614N (CuZn39Pb3) and CW617N (CuZn40Pb2) are different alloys and should not be treated as interchangeable. Confirm the body, seal and any armour-clamping materials for the selected gland.

How do I confirm connection compatibility?

Match the enclosure entry thread, pitch and engagement length. Metric, PG, NPT and BSP are different thread systems; a nominal size does not make them interchangeable. Confirm the actual thread offered for the selected model. IEC 62444 describes cable-gland requirements, not a thread profile.

What dimensions are needed for selection?

Provide the cable construction, outer sheath diameter, bedding diameter and armour dimensions where applicable, together with the enclosure entry. Select from the model’s documented cable acceptance range; entry size is not the cable diameter.

What determines suitability and operating limits?

BW glands are generally used for terminating armoured cable in dry indoor conditions. Do not infer an outdoor weather seal from the BW designation or from armour clamping alone. Confirm the selected product’s documented sealing arrangement and any claimed ingress-protection rating.

What finish and inspection documentation should I request?

State the required surface finish, coating thickness where relevant, and critical dimensions on the order. Material certificates, dimensional reports and any specified performance tests should be agreed in the quotation. A reference to a standard is not a declaration of third-party certification.

Can I request a custom part or export quotation?

Send a drawing or clearly dimensioned sample specification, material, quantity and delivery destination. Identify application conditions and required approvals. Brass Parts India can review the requirement and confirm feasibility, price, documentation and lead time for the quoted part.
