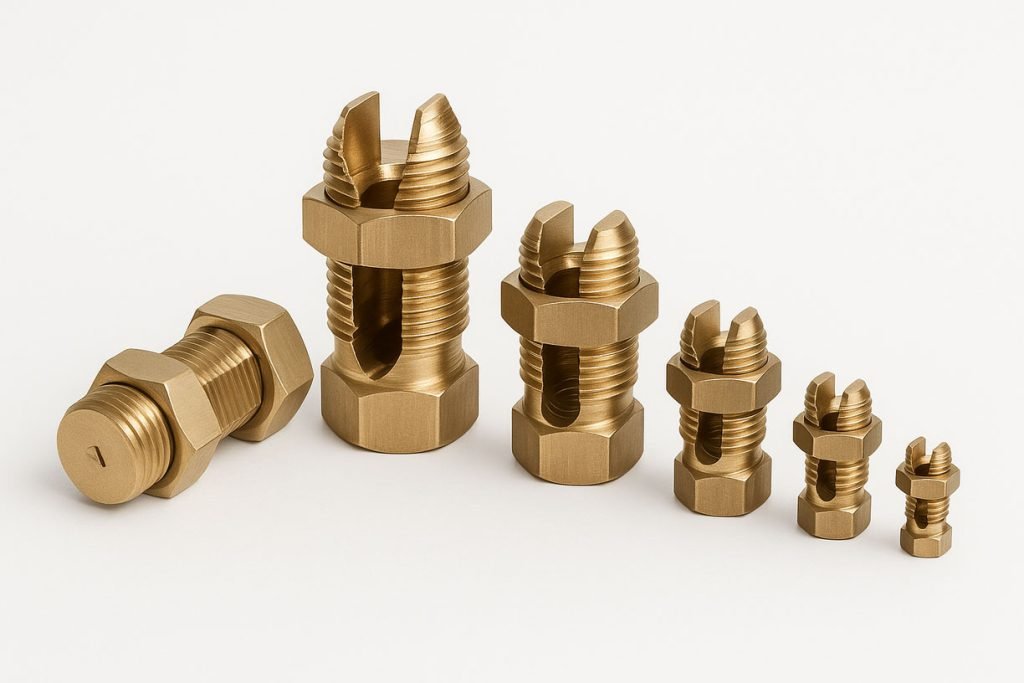

Professional Line Tap and Split Bolt Connection Solutions
BS 2874 CZ 112 Brass
10mm² to 500mm²
Natural Brass, Electro-Tinned
Manufactured from high tensile brass conforming to BS 2874 CZ 112 standards, ensuring superior mechanical strength, electrical conductivity, and corrosion resistance for demanding line tapping and conductor connection applications.
Threads are formed by rolling process giving the nut extra clamping force and superior mechanical properties compared to cut threads, ensuring reliable connections and long-term performance in electrical applications.
Pressure pads are made from extruded bars (NOT CAST), preventing the pads from cracking and ensuring reliable conductor contact and connection integrity throughout the service life of the connector.
Manufactured to meet material and dimensional specifications laid by different international standards, ensuring global compatibility and professional-grade quality for electrical distribution applications.
| Conductor mm² | C mm | Product Code No. |
|---|---|---|
| 10 | 4.50 | SBC-10 |
| 16 | 6.00 | SBC-16 |
| 25 | 6.90 | SBC-25 |
| 32-35 | 8.10 | SBC-32 |
| 50 | 9.70 | SBC-50 |
| 70 | 11.2 | SBC-70 |
| 95 | 13.6 | SBC-95 |
| 100 | 14.0 | SBC-100 |
| 120 | 15.0 | SBC-120 |
| 150 | 16.6 | SBC-150 |
| 185 | 18.2 | SBC-185 |
| 240 | 21.4 | SBC-240 |
| 300 | 23.7 | SBC-300 |
| 400 | 26.2 | SBC-400 |
| 500 | 30.1 | SBC-500 |
High tensile brass split bolt connectors manufactured to BS 2874 CZ 112 standards with rolled threads for extra clamping force, available in comprehensive sizes from 10mm² to 500mm² for professional electrical connections.
Professional line taps and split bolts designed for electrical distribution and power line applications, featuring extruded pressure pads to prevent cracking and ensure reliable conductor connections.
High conductivity copper split bolt connectors for applications requiring maximum electrical performance, available in the same comprehensive size range with superior conductivity characteristics.
Available in natural brass and electro-tinned finishes, providing enhanced corrosion protection and improved electrical conductivity for demanding environmental conditions and long-term reliability.
Our split bolt connectors and line taps are essential components for electrical distribution systems, power line installations, and conductor connections where reliable tapping and joining of electrical conductors is required. These connectors are widely used in utility applications, industrial power distribution, and electrical infrastructure projects.
Brass Split Bolt Connectors Line Taps Split Bolts is a fastening component used in mechanical and electrical assemblies. Final suitability depends on the approved specification and application conditions.
Typical applications include mechanical and electrical assemblies. Confirm load, environment, mating parts and applicable standards before selection.
Specify brass or another drawing-specified alloy. State the exact grade because similar commercial alloys can differ in composition and performance.
Standard and custom sizes can be reviewed from thread size, pitch, length, head or drive style and tolerance. Nominal size alone may not define compatibility.
Provide thread size, pitch, length, head or drive style and tolerance, with units, tolerances and drawing revision.
Yes. Custom geometry, threads, tolerances and features can be assessed from a dimensioned drawing or approved sample.
Relevant Metric, BSP, BSPT, NPT, NPTF, PG, BA or BSW threads may be considered. Specify form, size, pitch, class and engagement length.
Options may include natural, plated or passivated. Specify coating type, thickness, appearance and corrosion or conductivity needs.
Tolerance depends on material, size, geometry and process. Mark critical dimensions and fits clearly on the drawing.
Check mating dimensions, orientation, sealing or retention method and specified tightening torque before use.
Inspection can cover material identity, critical dimensions, threads, finish and drawing-specific functional checks.
Material certificates, dimensional reports and coating or test records can be agreed at quotation stage.
Prototype or pre-production samples can be reviewed for new custom parts, subject to tooling and material requirements.
Minimum quantity and lead time vary with material, size, tooling, finish, inspection and order volume.
Provide the drawing or specification, material, dimensions, tolerances, finish, quantity, inspection, packing and destination.
