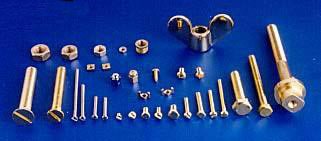

Brass Nuts & Fasteners

Engineered for superior performance and reliability, our comprehensive range of Brass Nuts and Fasteners includes hex nuts, square nuts, panel nuts, lock nuts, and specialized machined components. Manufactured from high-quality brass conforming to BS 2874/2872 standards, these precision fasteners are designed to meet diverse industrial applications with exceptional corrosion resistance and mechanical strength. Our extensive product line covers metric and imperial threading systems to serve global markets.

Product Range

Hex Nuts & Set Screws: Manufactured to DIN 933, BS 1083, BS 3692 standards, available from 3mm to 16mm diameter and up to 100mm length.

Brass Hex Nuts: Precision nuts to DIN 934, BS450, BS1083, BS 3692 standards, ranging from 2mm to 30mm diameter.

Slotted Head Screws: Complete range including pan head (DIN 85), raised CSK head (DIN 964), and CSK head (DIN 963) screws, with specialization in conduit box fittings and switch/socket applications.

Cross Recessed Screws: Manufactured to DIN 7985, 965, 966, and JIS B1111-1987 standards for pan, CSK, and raised CSK heads.

Square Nuts: Heavy-duty square nuts to DIN 557 standard, available from 3mm to 30mm diameter.

Brass & Copper Studding: Threaded rods to BS 2693pt.1-1956, available up to 3″ diameter and 3 meters length.

Wing Nuts: Custom wing nuts manufactured to customer specifications for hand-tightening applications.

Specifications

Material:

Brass to BS 2874/2872

Finish:

Natural, Electro-Tinned, Nickel

Threads:

ISO Metric, BSW, BA, BSF, UNC, UNF

Standards:

DIN, BS, JIS Compliant

Frequently Asked Questions – Brass Nuts

What is Brass Nuts?

Brass Nuts is an industrial fastening component made for mechanical assembly, electrical equipment, panels, fixtures and OEM products. The exact construction, material and dimensions should be selected from the product specification or approved customer drawing.

What are the common applications of Brass Nuts?

Typical uses include mechanical assembly, electrical equipment, panels, fixtures and OEM products. Suitability should be confirmed against the actual load, environment, mating parts and applicable industry requirements.

Which materials are available for Brass Nuts?

Material can be specified as drawing-specified brass or other alloy grades selected for strength, machinability and corrosion conditions. State the exact grade on the enquiry because similar commercial grades can differ in composition and performance.

Which sizes can be supplied for Brass Nuts?

Standard and custom sizes can be reviewed. Provide thread form, diameter, pitch, length, head style, drive and tolerance class so the correct size and manufacturing route can be confirmed.

What dimensions are needed to order Brass Nuts?

Send thread form, diameter, pitch, length, head style, drive and tolerance class. A dimensioned drawing with units, tolerances and revision number is the clearest basis for quotation and inspection.

Can Brass Nuts be manufactured to a custom drawing?

Yes. Custom geometry, threads, tolerances and features can be assessed from a drawing or clearly dimensioned sample. Feasibility is confirmed before production.

Which thread standards are available for Brass Nuts?

Metric, BSP, BSPT, NPT, NPTF, PG, BA, BSW or other thread forms may be considered where relevant. Specify the thread standard, size, pitch, class and engagement length rather than only a nominal diameter.

Which surface finishes are offered for Brass Nuts?

Available options may include natural, nickel-plated, chrome-plated, passivated or other specified finishes. Specify coating type, thickness, colour or appearance standard and any corrosion or conductivity requirement.

What tolerances can be maintained on Brass Nuts?

Tolerances depend on material, size, geometry and process. Mark critical dimensions and fits on the drawing; tighter tolerances should be applied only where function requires them.

How should Brass Nuts be installed or assembled?

Match the thread and mating material, use the specified torque and avoid cross-threading or over-tightening. Installation should be completed by qualified personnel using the relevant equipment and safety procedure.

How is the quality of Brass Nuts checked?

Inspection can cover material identity, critical dimensions, threads, visual finish and any drawing-specific functional checks. Sampling level and acceptance criteria should be agreed with the order.

What inspection documents are available for Brass Nuts?

Material certificates, dimensional inspection reports, coating reports or other requested records can be discussed at quotation stage. Required documents must be listed before production.

Are prototypes or pre-production samples available for Brass Nuts?

Prototype or sample quantities can be reviewed for new custom parts. Approval criteria, tooling needs, sample quantity and any production-intent material should be agreed in advance.

What are the minimum order quantity and lead time for Brass Nuts?

Minimum quantity and lead time vary with size, material, tooling, finish, inspection and order volume. They are confirmed after the complete technical requirement is reviewed.

What information is needed for a Brass Nuts quotation?

Provide the drawing or specification, material grade, dimensions, tolerances, finish, quantity, inspection needs, packing requirements and delivery destination for an accurate quotation.
