Bronze Transformer Connectors | Transformer Grounding Connectors | Transformer Tank Connectors

High-conductivity Bronze Transformer Connectors are critical electrical grounding and bonding components used for distribution transformers, power transformers, and substation equipment. These connectors provide a low-resistance, corrosion-resistant grounding path between transformer tanks, frames, and earth grounding conductors, ensuring safety, fault-current dissipation, and long-term reliability.

PRICE: $12/90/kilogram , CIF USA Port

1️⃣ Bronze Transformer Connectors – Technical Overview

Bronze transformer connectors are mechanical grounding connectors manufactured from high-conductivity copper alloy (bronze) for superior electrical performance and durability. These connectors are designed to terminate stranded or solid copper grounding conductors onto transformer tanks, frames, or grounding bars. The bronze body ensures excellent corrosion resistance, making them suitable for outdoor substations and harsh environments. Their low contact resistance minimizes voltage rise during ground faults. Typical designs include eye-bolt posts, grounding lugs, and flat-surface tank connectors. Bronze transformer connectors maintain mechanical integrity under vibration and thermal cycling. They are compatible with EEI-NEMA distribution transformers. Installation is quick and does not require special crimping tools. These connectors are widely used by utilities, OEMs, and EPC contractors. They comply with international electrical grounding standards and environmental regulations.

2️⃣ Transformer Grounding Connectors – Performance & Safety

Transformer grounding connectors establish a permanent electrical bond between transformer enclosures and the grounding system. They are engineered to handle fault currents, lightning surges, and transient over-voltages. Manufactured from bronze or copper alloy, these connectors offer high conductivity and long service life. They accommodate a wide range of conductor sizes for flexible field installation. The mechanical clamping design ensures consistent pressure and low resistance over time. These connectors reduce the risk of electric shock, equipment damage, and fire hazards. They are suitable for utility substations, renewable energy plants, industrial transformers, and commercial installations. Many designs feature rotatable eye bolts for vertical or horizontal conductor entry. Stainless steel or silicon bronze hardware enhances corrosion resistance. Compliance with grounding codes makes them ideal for critical infrastructure.

3️⃣ Transformer Tank Connectors – Mounting & Construction

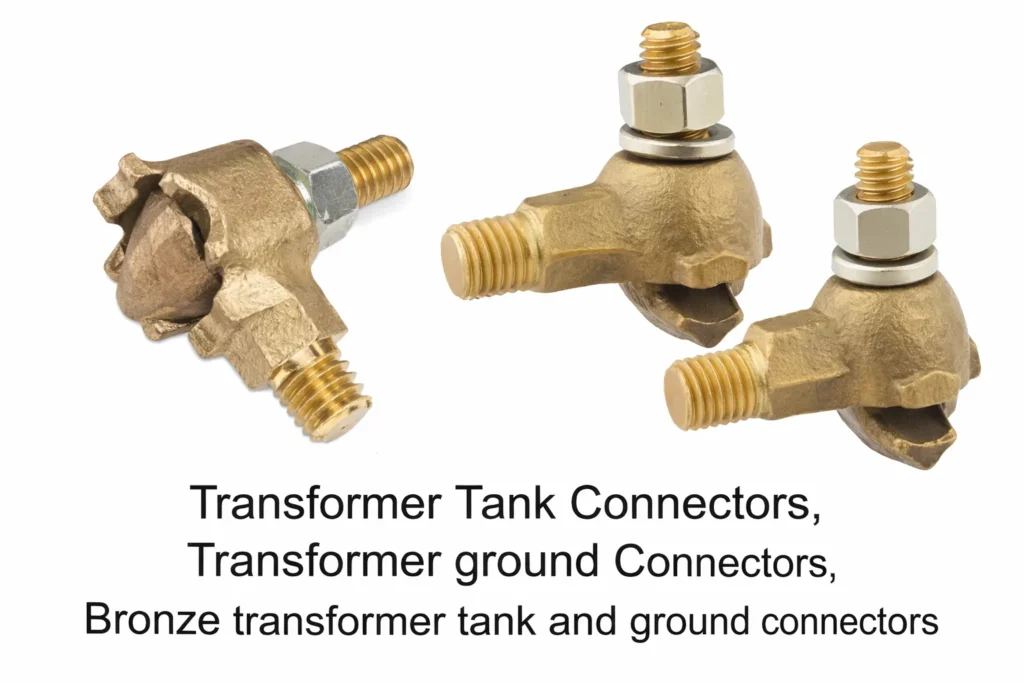

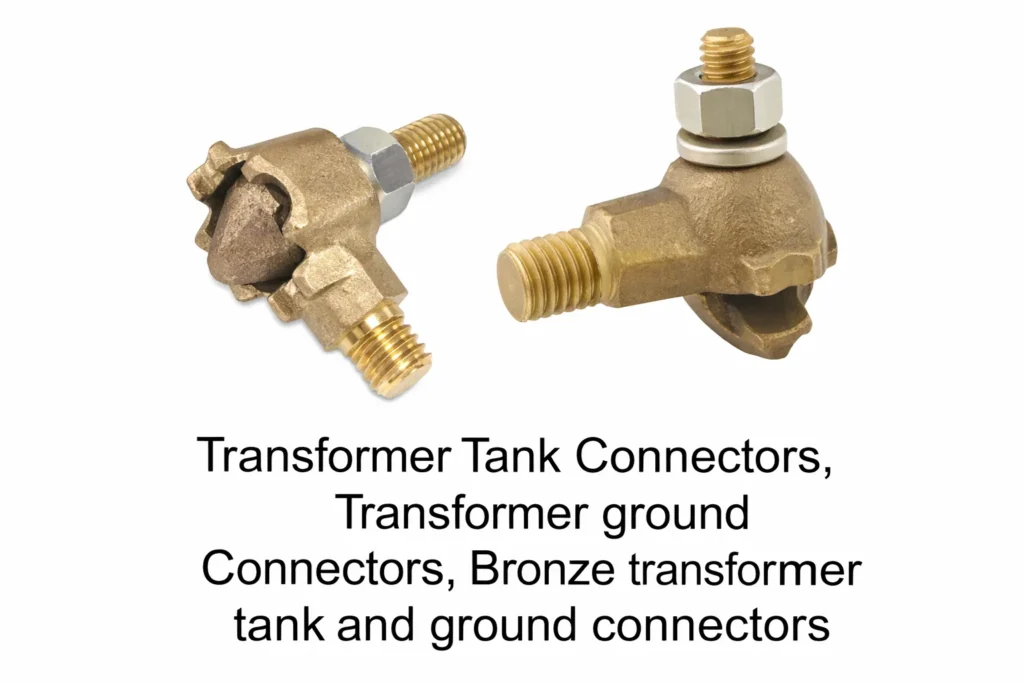

Transformer tank connectors are specifically designed for direct mounting on flat transformer tank surfaces. These connectors provide a dedicated grounding point on painted or bare metal transformer tanks. The bronze casting ensures excellent electrical continuity through coatings and surface irregularities. They typically use 1/2-13 UNC threaded studs for secure mounting. The compact design allows installation in space-restricted transformer layouts. Transformer tank connectors accept stranded copper grounding conductors commonly used in substations. Their rugged construction withstands outdoor exposure, moisture, UV radiation, and industrial pollutants. They maintain grounding integrity during transformer vibration and load cycling. Installation requires only standard hand tools. These connectors are standard components in modern transformer grounding systems.

📊 Technical Specification Table

📐 Wire & Conductor Size Compatibility for Bronze Transformer Tank Connectors, Transformer Ground Connectors

📜 Codes, Standards & Compliance (COEs) for bronze transformer Connectors and Bronze Transformer Tank Connectors

Our Bronze Transformer & Grounding Connectors are designed to meet or exceed the following:

• NEC (National Electrical Code) – Grounding & Bonding Requirements

• IEEE 80 – Guide for Safety in AC Substation Grounding

• IEEE C57 – Power & Distribution Transformers

• EEI-NEMA Standards – Utility Transformer Specifications

• UL 467 – Grounding & Bonding Equipment (Design Alignment)

• RoHS Compliance – Restriction of Hazardous Substances

• REACH Compliance – European Chemical Safety Regulation

• TSCA Compliance – Toxic Substances Control Act

🏭 Applications

• Distribution & Power Transformers

• Utility Substations

• Solar & Wind Power Transformers

• Industrial Power Systems

• Commercial Electrical Installations

• OEM Transformer Manufacturing

• Retrofit & Maintenance Projects

⭐ Why Choose Us for Bronze Transformer Connectors , Bronze Transformer Connectors | Transformer Grounding Connectors | Transformer Tank Connectors

• Engineering-Grade Bronze Alloys – Optimized for conductivity & corrosion resistance

• Utility-Approved Designs – Compatible with EEI-NEMA transformers

• Wide Wire Range Support – Reduces inventory complexity

• Precision Machining & Casting – Consistent quality and fit

• Global Export Experience – USA, Europe, Middle East, Utilities

• Custom OEM Capability – Stud sizes, markings, plating options

• Traceable Quality Control – Material & dimensional inspection

• Environmentally Compliant – RoHS / REACH / TSCA ready

• Long Service Life – Minimal maintenance required

• Competitive Pricing – Direct manufacturer advantage

❓ Common Questions & Answers

Q1. What is a bronze transformer grounding connector?

A bronze transformer grounding connector is a mechanical connector used to electrically bond transformer tanks or frames to grounding conductors using high-conductivity bronze.

Q2. Why is bronze preferred over copper for transformer grounding connectors?

Bronze offers superior corrosion resistance, mechanical strength, and long-term stability while maintaining excellent electrical conductivity.

Q3. What wire sizes do transformer tank grounding connectors support?

Most bronze transformer connectors support #8 AWG to 2/0 AWG stranded copper conductors.

Q4. Are these connectors suitable for outdoor substations?

Yes, bronze transformer connectors are ideal for outdoor substations, coastal areas, and industrial environments due to corrosion resistance.

Q5. Do transformer tank connectors require crimping tools?

No, these are mechanical connectors and require only standard hand tools for installation.

Q6. Are these connectors compliant with NEC and IEEE grounding standards?

Yes, they are designed to align with NEC, IEEE 80, IEEE C57, and utility grounding practices.

Q7. Can these connectors be used on painted transformer tanks?

Yes, the mechanical design ensures reliable grounding even on painted or coated transformer surfaces.

Q8. Do you offer OEM or private-label transformer grounding connectors?

Yes, custom OEM manufacturing, branding, and packaging are available on request.

Request a Quote for Bronze Transformer Ground Connectors and Transformer Tank Connectors-
