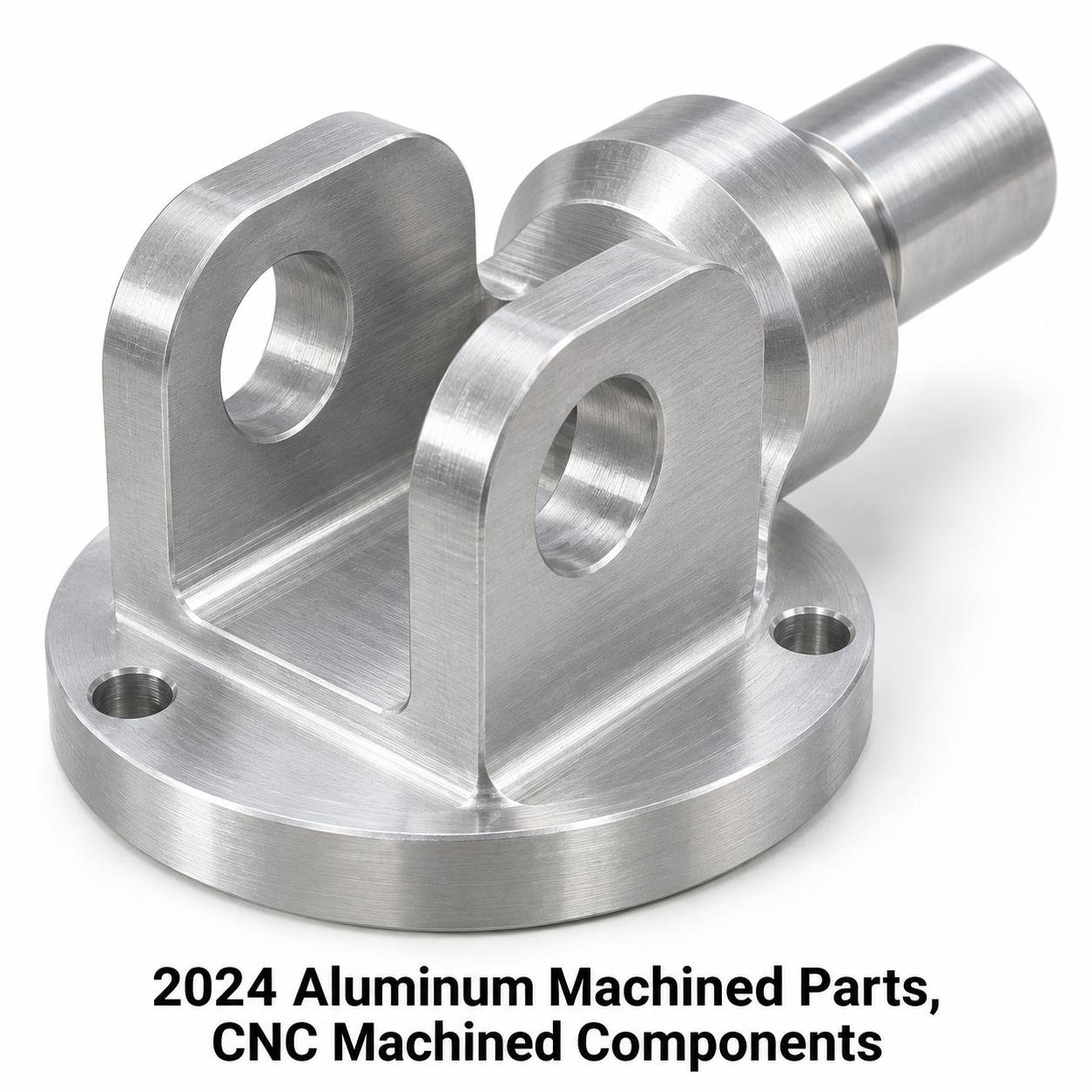

2024 aluminum machined parts and CNC machined components are precision mechanical items produced from specified aluminum-copper-magnesium alloy stock. Turning and milling create pins, bushes, mounting blocks and threaded fittings for approved equipment designs. Brass Parts India accepts drawing-based enquiries from electrical OEMs, EPC contractors, utilities and industrial distributors. Specify the material temper, product form, corrosion protection and inspection scope together. 2024 is considered for mechanically loaded parts; it is not an automatic substitute for electrical-conductor aluminum.
Price: US$ 12.00/Kg | Standard tolerance: ±0.05 mm
The final quotation confirms drawing complexity, quantity, chargeable weight, finishing, documentation and delivery terms.

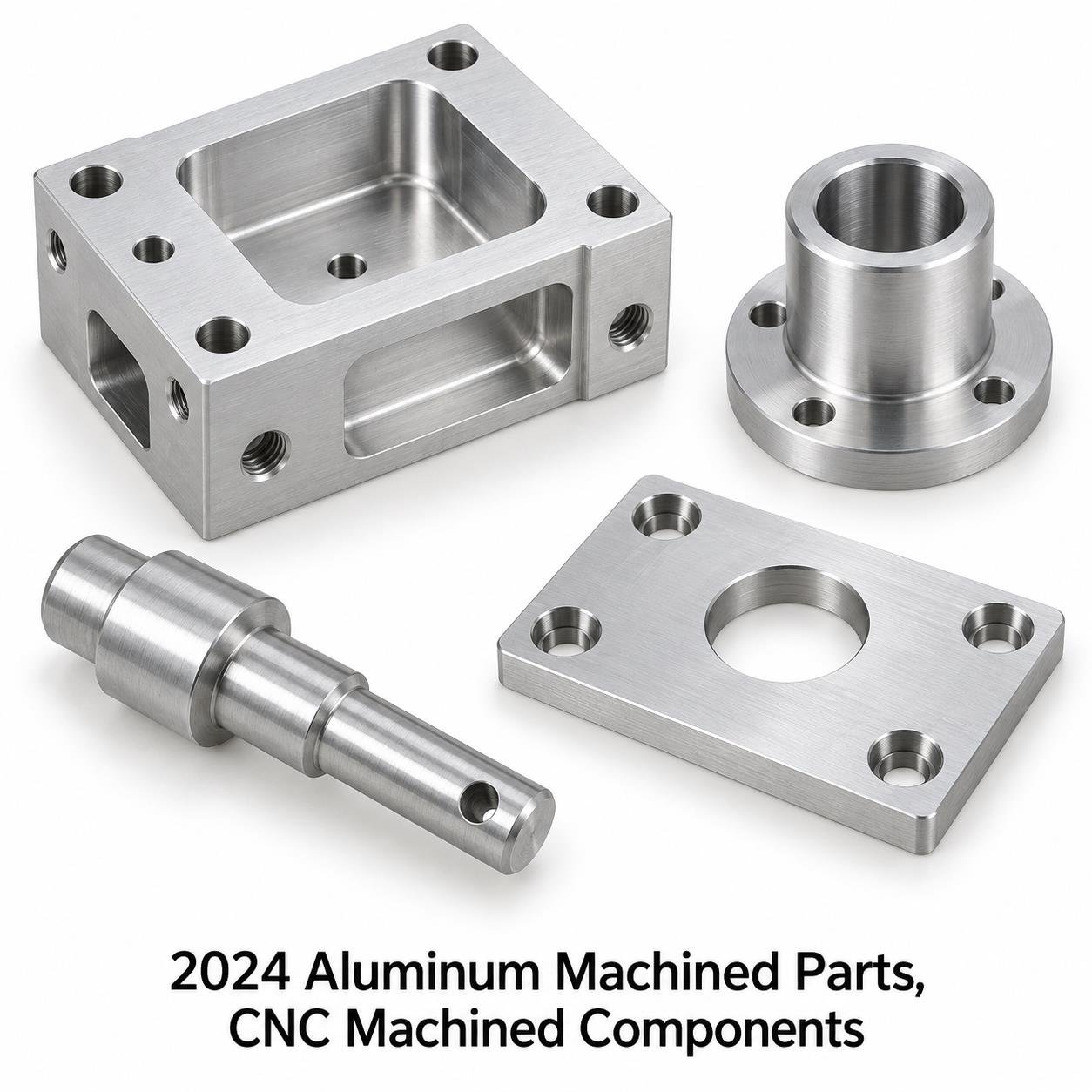

2024 Aluminum Machined Parts, CNC Machined Components cover component geometries such as precision pins, flanged bushes, threaded fittings, structural spacers, mounting blocks, actuator collars. Begin with the interface that controls assembly, then define supporting features from a consistent datum system. A shoulder can set axial position, a bore can locate a mating shaft, and a face can transfer clamping force. These functions require different checks. Include accessible tool reliefs and avoid unspecified sharp internal corners. Identify which dimensions must remain correct after finishing and which are reference values. The approved drawing should connect each acceptance requirement to the intended mechanical function.
2024 is a heat-treatable aluminum-copper-magnesium alloy. Its machining characteristics and strength support precision fittings and mechanically loaded components, while corrosion protection needs particular attention. T4, T351 and other specified tempers are different purchasing conditions. Plate and bar requirements should be reviewed separately, including orientation where the design depends on it. Anodizing appearance and corrosion behaviour differ from 6061. Select the protective system for the actual exposure and mating materials. Do not assume that a familiar aerospace use establishes certification for a newly supplied industrial component.
The standard tolerance for these parts is ±0.05 mm. Define the reference face, axis or datum system used to inspect the component. Position, perpendicularity, coaxial features and surface texture need their own drawing requirements when they influence assembly. A nominal dimension without its tolerance can lead to different interpretations during machining and inspection. Provide limits for critical interfaces, and distinguish functional dimensions from reference information. For flanged bushes, identify the features that control location rather than applying unnecessarily restrictive requirements everywhere.
For 2024 mounting blocks and pins, plan the roughing sequence around section changes and the stock condition. A deep pocket beside a thin wall may move after unclamping, so final inspection needs the agreed free-state condition. Bearing shoulders and locating bores should reference functional datums. Thread reliefs, drilled intersections and chamfers need separate acceptance requirements. Avoid presenting ordinary CNC capability as a fatigue-life guarantee. The designer must assess cyclic loading, local stresses and the effect of surface treatments on the finished assembly.
Available finish routes are specified as machined aluminum, anodizing or another specified protective finish. The drawing should define whether a surface is functional, cosmetic or both. Break sharp edges in accordance with the agreed requirement while protecting contact faces, thread starts and sealing lands. Cleaning needs depend on the service: residual chips, machining fluid or polishing compound can affect assembly. For mounting blocks, identify surfaces that must remain free from coating or mechanical damage. Confirm whether dimensional acceptance is required before finishing, after finishing or at both stages.
Procurement teams should describe actuator collars by a controlled part number rather than by a photograph alone. A complete enquiry includes the drawing revision, quantity, material designation, finish and destination. State whether the order is a prototype, scheduled release or repeat requirement. The listed kilogram rate provides a commercial reference, but the written quotation must define its scope and weight basis. Keeping technical and commercial information together helps electrical OEMs, EPC contractors, utilities and distributors compare offers on the same requirements.
For aluminum components, specify through holes and blind holes separately, including usable depth and any drill-point allowance. Identify cross holes that intersect a bore so the deburring approach can be considered. A dimensioned bore may serve as clearance, location, bearing support or a flow passage; these functions can require different finish and inspection methods. Provide the mating diameter or fit requirement where relevant. Do not infer a sealing or pressure capability from an internal passage alone.
Define thread system, nominal size, pitch, internal or external form, engagement length and acceptance class. Metric, unified and pipe threads are different specifications and should not be mixed under a generic threaded-parts description. Include the required gauge basis and any post-plating allowance. For threaded fittings, check wall thickness around the thread and provide adequate entry chamfers. Torque, locking method and service loading belong to the assembly specification and should be supplied when they affect the component design.
Grooves and slots should show width, depth, root radius and position from an identified datum. A sharp internal corner shown in a model may require an alternative radius or a different operation. State whether a groove locates a retaining element, provides clearance or carries a seal. The required edge condition should preserve the intended function. With CNC turning and milling with drawing-defined secondary operations, access and component support influence the sequence; review narrow features and deep recesses before fixing the final drawing.
Describe the actual function of each mating face. Mechanical seating, electrical contact and sealing do not necessarily require the same preparation. Specify flatness or roughness where the assembly needs it instead of treating the general ±0.05 mm dimensional tolerance as a surface specification. For precision pins, identify contact zones, prohibited coating areas and acceptable handling marks. The equipment designer remains responsible for validating the complete joint under operating loads, temperature and environmental conditions.
Inspection should follow the drawing’s critical features and the agreed sampling plan. Suitable measurement methods depend on feature size, accessibility and tolerance; the presence of a CNC machine is not an inspection record. Specify whether a first-article report, dimensional layout, material certificate or batch identification is needed. Maintain a clear connection between the drawing revision and ordered aluminum grade. Special documentation and retained samples should be requested before production so the commercial offer includes the required work.
Protect finished threads, bores and contact faces during handling and transport. Separate components where metal-to-metal movement could damage a functional surface. Specify part-number labels, batch information and package quantities when they are needed for stores control or assembly lines. Repeat orders should refer to the approved drawing revision and any accepted deviations. If actuator collars are supplied with other components, identify each item independently to avoid mixing similar-looking materials or variants during receipt and installation.
| Parameter | Specification / ordering information |
|---|---|
| Product | 2024 Aluminum Machined Parts, CNC Machined Components |
| Brand | Brass Parts India |
| Manufacturing route | CNC turning and milling with drawing-defined secondary operations |
| Standard dimensional tolerance | ±0.05 mm |
| Raw material | 2024; T4, T351 and other drawing-approved conditions |
| Dimensions and geometry | Customer drawing; confirm feasibility before order |
| Thread specification | Drawing-defined system, size, pitch, class and engagement |
| Surface treatment | machined aluminum, anodizing or another specified protective finish |
| Surface roughness and geometric controls | Individually specified where required; not implied by general tolerance |
| Inspection and documents | Agreed inspection plan, material records and reporting scope |
| Listed rate | US$ 12.00/Kg; written quotation defines scope |
| Order information | Part number, revision, quantity, finish, documentation and destination |
EN AW-2024; AlCu4Mg1. The following international designations identify alloy families; they do not establish unconditional equivalence of delivered stock. Match composition, temper, product form, mechanical limits and inspection documents. Different rows are alternative materials requiring design approval.
| Alloy | European numerical designation | Chemical designation | Condition to specify |
|---|---|---|---|
| 6061 | EN AW-6061 | AlMg1SiCu | T6 / form-specific stress-relieved condition |
| 7075 | EN AW-7075 | AlZn5.5MgCu | T6 / T73 families; confirm exact temper |
| 2024 | EN AW-2024 | AlCu4Mg1 | T4 / T351 or drawing-approved temper |
| 5083 | EN AW-5083 | AlMg4.5Mn0.7 | O / H111; H116/H321 for specified plate |
| Product form / requirement | Specification framework to confirm |
|---|---|
| Extruded rod, bar or shapes | ASTM B221 or applicable EN 755 product requirements |
| Rolled plate or sheet | ASTM B209 or applicable EN 485 product requirements |
| Cold-finished stock | Applicable product specification and dimensional limits |
| Material inspection document | EN 10204 document type if ordered and available |
| Variant | Features to define |
|---|---|
| precision pins | Overall length, steps and functional datums |
| flanged bushes | Mating diameters, shoulders and surface condition |
| threaded fittings | Thread details, engagement and entry geometry |
| structural spacers | Bore limits, wall thickness and edge breaks |
| mounting blocks | Ports, flats, mounting holes and contact zones |
| actuator collars | Thickness, location and handling requirements |
| Customer / sector | Potential component role | Information needed |
|---|---|---|
| Electrical OEMs | Connector, terminal, enclosure or mounting interfaces | Electrical function, mating geometry, finish and assembly validation |
| EPC contractors | Project-specific equipment and installation components | Approved drawings, schedules and project documentation |
| Power utilities | Equipment maintenance and replacement components | Original specification, operating conditions and approval route |
| Distributors | Repeat supply of identified drawing-based parts | Part numbers, revisions, quantities and packaging |
| Instrumentation and industrial equipment | Spacers, housings, adapters and mechanical interfaces | Loads, environmental exposure and functional tolerances |
Application suitability depends on the complete design. An alloy number without a temper is an incomplete mechanical specification. Anodizing changes surface dimensions and electrical contact behaviour; coating thickness, masking and final inspection dimensions must be agreed before machining. Provide temperature range, exposure conditions and expected mechanical or electrical function when these affect material choice. Equipment ratings, pressure limits and compliance claims require assembly-level evidence. The component drawing should capture the features needed to support that validation rather than relying on a generic catalogue description.
Review the aluminum grade, dimensions, datum structure and finish together. Identify features that need additional clarification, such as inaccessible burrs, incomplete thread callouts or conflicting limits. Confirm the controlled revision and obtain approval for any proposed change before manufacture.
Select the specified stock form and condition, then plan cutting allowances and workholding. Thin aluminum sections can distort under clamping. Tool geometry, chip clearance, residual stress and the chosen temper affect the final fit and surface quality. The setup should provide access to required features while protecting surfaces that are already finished.
CNC turning and milling with drawing-defined secondary operations creates the principal geometry. Roughing removes excess material before the relevant finishing operations establish drawing features. Drilling, boring, tapping, slotting or secondary milling are added where required. Tool selection and cutting conditions depend on the actual alloy and geometry.
Remove burrs to the agreed edge specification, especially at intersecting holes and thread starts. Avoid rounding a functional edge beyond the drawing allowance. Clean the components using a method compatible with the material and subsequent finishing or assembly requirements.
Apply machined aluminum, anodizing or another specified protective finish only as ordered. Check the effect on fit and functional surfaces, including masked areas. Verify the required dimensions in the agreed finished condition and review the specified inspection records before release.
Identify parts and packages against the order and drawing revision. Protect functional surfaces for the selected transport route. Include the agreed documentation and distinguish separate batches or materials where the purchase order requires traceability.
Quality requirements must be tied to the supplied part and order. Ask for the current applicable ISO 9001 certificate if supplier quality-system certification is required; confirm its scope and validity. Certification scope and validity must be checked for the supplying facility and ordered work. Material records, including an EN 10204 document where specified and available, should match the supplied grade and batch. A material certificate does not replace dimensional inspection or finished-equipment approval.
| Requirement | How to specify it |
|---|---|
| Material conformity | Exact grade, standard, condition and certificate type |
| Dimensional acceptance | Drawing revision, critical features and inspection plan |
| Restricted substances | Applicable jurisdiction, permitted limits and evidence required |
| Finish verification | Coating type, thickness, masking and acceptance method |
| Application approval | Relevant assembly or project standard and responsible approval authority |
A useful quotation starts with an engineering definition of the aluminum part. Brass Parts India receives drawing-based enquiries in this CNC and VMC category from its Jamnagar, India contact location. Domestic and international purchasing teams can specify destination, packing and documentation within the same enquiry. Compare offers using the same grade, tolerance, finish and documentation scope. The supplied rate is visible here so purchasing teams can begin a commercial discussion with a clear reference, while the approved drawing remains the basis of manufacture.
Aluminum CNC Turned Parts parent range
Explore the CNC and VMC machined parts category. Compare processes and materials against the component function; related pages are alternatives for discussion, not automatic substitutes.
Use these purchasing terms with the alloy designation and approved drawing. Translated names do not change material or inspection requirements.
| Language | Related technical terms |
|---|---|
| Spanish | piezas mecanizadas de aluminio 2024; componentes de aluminio CNC; fresado de aluminio |
| Russian | детали из алюминия 2024; обработка алюминия на ЧПУ; фрезерованные алюминиевые детали |
| French | pièces usinées en aluminium 2024; composants aluminium CNC; fraisage aluminium |
| Portuguese | peças usinadas de alumínio 2024; componentes de alumínio CNC; fresagem de alumínio |
| Italian | parti lavorate in alluminio 2024; componenti in alluminio CNC; fresatura alluminio |
Send the drawing and revision, aluminum grade, order quantity, finish, inspection requirements and delivery destination to Brass Parts India. Quote this product title and the listed US$ 12.00/Kg rate. Identify any individual tolerance differing from the standard ±0.05 mm. Request confirmation of price scope, material availability, production schedule and shipping terms in the written offer.
Contact us about your machined components.
2024 Aluminum Machined Parts, CNC Machined Components is an precision machined component made for industrial machinery, electrical equipment, automotive assemblies and engineered OEM applications. The exact construction, material and dimensions should be selected from the product specification or approved customer drawing.
Typical uses include industrial machinery, electrical equipment, automotive assemblies and engineered OEM applications. Suitability should be confirmed against the actual load, environment, mating parts and applicable industry requirements.
Material can be specified as the drawing-specified brass, copper, aluminium, stainless steel or other machinable alloy. State the exact grade on the enquiry because similar commercial grades can differ in composition and performance.
Standard and custom sizes can be reviewed. Provide drawing dimensions, datums, threads, tolerances and surface-finish requirements so the correct size and manufacturing route can be confirmed.
Send drawing dimensions, datums, threads, tolerances and surface-finish requirements. A dimensioned drawing with units, tolerances and revision number is the clearest basis for quotation and inspection.
Yes. Custom geometry, threads, tolerances and features can be assessed from a drawing or clearly dimensioned sample. Feasibility is confirmed before production.
Metric, BSP, BSPT, NPT, NPTF, PG, BA, BSW or other thread forms may be considered where relevant. Specify the thread standard, size, pitch, class and engagement length rather than only a nominal diameter.
Available options may include machined, polished, plated, passivated, anodised or other drawing-specified finishes. Specify coating type, thickness, colour or appearance standard and any corrosion or conductivity requirement.
Tolerances depend on material, size, geometry and process. Mark critical dimensions and fits on the drawing; tighter tolerances should be applied only where function requires them.
Check drawing revision, mating features, orientation and assembly torque before installation. Installation should be completed by qualified personnel using the relevant equipment and safety procedure.
Inspection can cover material identity, critical dimensions, threads, visual finish and any drawing-specific functional checks. Sampling level and acceptance criteria should be agreed with the order.
Material certificates, dimensional inspection reports, coating reports or other requested records can be discussed at quotation stage. Required documents must be listed before production.
Prototype or sample quantities can be reviewed for new custom parts. Approval criteria, tooling needs, sample quantity and any production-intent material should be agreed in advance.
Minimum quantity and lead time vary with size, material, tooling, finish, inspection and order volume. They are confirmed after the complete technical requirement is reviewed.
Provide the drawing or specification, material grade, dimensions, tolerances, finish, quantity, inspection needs, packing requirements and delivery destination for an accurate quotation.
