Transformer Spade Terminals, Transformer Spade Connectors

Brand: Cable Glands India | Price: US$ 18/kg

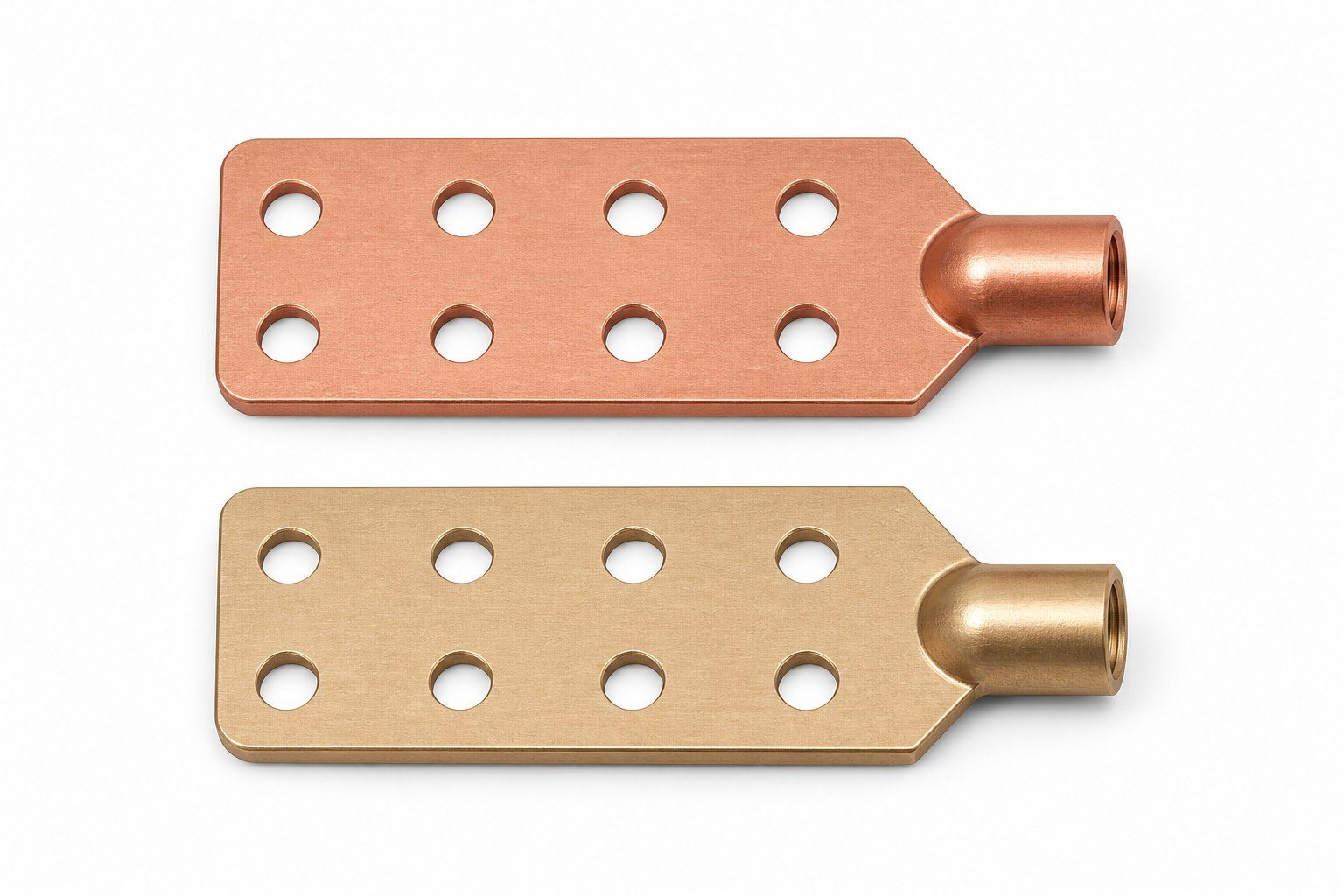

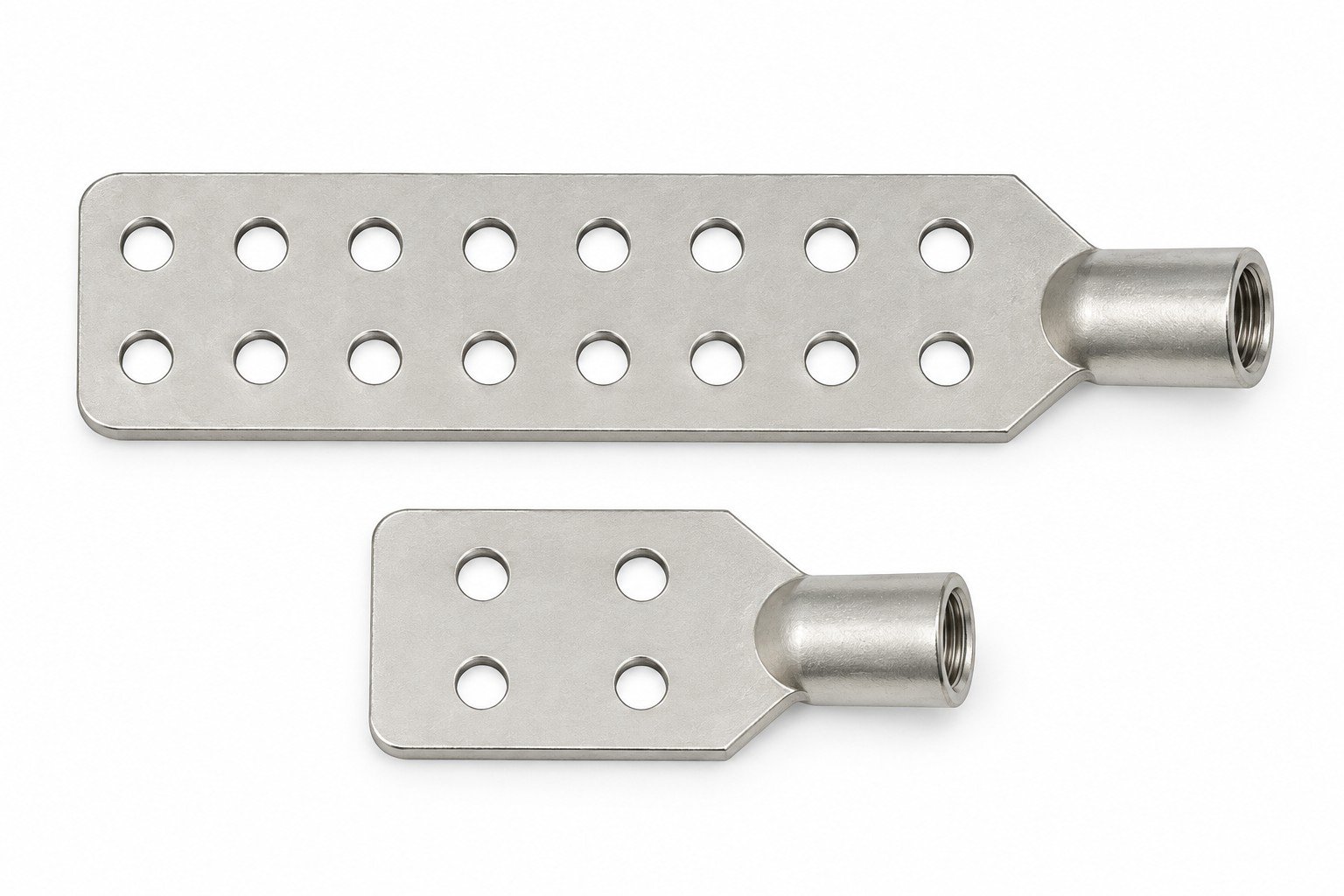

Cable Glands India transformer spade terminals connect a transformer bushing stud to a flat, bolted cable-lug or busbar interface. The straight inline design follows the transformer stud axis into the connection palm. This range covers NEMA-spaced configurations from 2 to 16 holes, bronze and copper alloys including CDA 833, CDA 836, CDA 844 and Copper C110, and natural or tin-plated finishes. Nominal thread diameters are 3/8 inch, 1/2 inch, 3/4 inch and 1 inch, with UNC, UNF, UNEF or UNS specifications selected to match the approved drawing.

Designed for electrical OEM procurement, EPC projects, utility maintenance and distributor sourcing, each terminal must be selected against its mating stud, palm geometry, conductor arrangement and electrical duty. Submit your drawing for a configuration-specific quotation.

Transformer Spade Connector Product Overview

Transformer Bushing Stud Connections

A transformer spade connector provides a mechanical and electrical transition between a bushing terminal and outgoing conductors. Its threaded hub engages the specified transformer stud, while the flat palm supports bolted connections. Stud diameter alone does not establish compatibility. Pitch, engagement length, thread class and available clearance also matter. The terminal must seat without bottoming prematurely or imposing unintended loads on the bushing. Assembly access should accommodate the approved tooling and hardware. Include the bushing drawing when requesting a replacement. This helps coordinate the complete connection rather than treating the terminal as an isolated metal component.

NEMA-Spaced Terminal Palms

The palm is the flat connection surface carrying the bolt-hole pattern. NEMA-spaced arrangements help coordinate mating cable lugs, busbar pads and terminal accessories. Specify actual centre distances, hole diameter, row layout and edge distances on the drawing. A shared hole pattern does not establish current capacity or universal interchangeability. Palm thickness and usable contact area also affect joint design. Bolt heads, washers and lug barrels need sufficient clearance. For multirow configurations, check access to every fixing position. The final pattern must match both the mating component and the equipment envelope.

Two-Hole to Sixteen-Hole Configurations

The range extends from compact two-hole terminals to larger sixteen-hole arrangements. Intermediate combinations support different equipment layouts and connection requirements. The number of holes describes the palm pattern, not the number of independent electrical circuits. Multiple conductors attached to one terminal remain part of the same connected node. Lug positions must account for cable bend radius and mechanical support. Larger palms can increase the lever arm acting on a transformer stud. Therefore, confirm bracing and installation space before increasing terminal size. Hole combinations, overall dimensions and permitted loading are drawing-specific.

Bronze and Copper Alloy Selection

CDA 833, CDA 836 and CDA 844 are familiar purchasing names for cast copper-base alloys. Their formal UNS designations are C83300, C83600 and C84400. They are frequently described commercially as bronze, although their metallurgical classifications include red and semi-red brasses. Copper C110 corresponds to wrought C11000 electrolytic tough-pitch copper. These materials differ in composition, conductivity, strength and manufacturing behaviour. They should not be substituted solely because their colour or dimensions appear similar. State the full alloy designation and required product form. Confirm any proposed alternative against the equipment specification.

Natural and Tin-Plated Contact Surfaces

Natural finish leaves the selected copper alloy unplated after the agreed cleaning and machining operations. Tin plating introduces a specified metallic coating over the prepared substrate. Finish selection should consider the mating material, environment and maintenance practice. Coating thickness, adhesion and coverage belong in the purchasing specification. Threads may require allowance or masking according to the approved design. Tin plating does not establish aluminium-conductor compatibility by itself. Contact preparation and bolting practice remain essential. Both finishes require protected handling to avoid damage to critical mating faces.

OEM Drawings and Replacement Requirements

A controlled drawing provides the common reference for manufacture, inspection and installation. Include the terminal orientation, hub position and any offset between the stud axis and connection palm. Identify critical datums and tolerances instead of relying on overall dimensions alone. Replacement parts also require confirmation of the existing bushing condition and stud specification. Sample measurements can support development, but worn components may not represent original tolerances. Define the required material and finish before sample approval. Record the drawing revision on the purchase order. This supports consistent repeat ordering and clear acceptance criteria.

Key Features

• NEMA-spaced transformer connection palms in 2–16-hole combinations.
• CDA 833, CDA 836, CDA 844 and C110 copper material options.
• Natural metal or tin-plated finish.
• 3/8-inch, 1/2-inch, 3/4-inch and 1-inch nominal threads.
• UNC, UNF, UNEF and UNS thread specifications to approved drawings.
• Configurable palm, hub and connection geometry.
• Drawing-based selection for OEMs, EPC contractors, utilities and distributors.

Electrical Contact Faces

Flat mating surfaces support controlled contact between the terminal and the attached lug or busbar. Surface condition should be assessed before assembly. Burrs, distortion and contamination can prevent the intended seating. Specify flatness and surface finish where they affect the joint. The installation design must establish contact pressure and fastening arrangements. A visually polished surface alone does not demonstrate electrical performance. Where required, evaluate contact resistance and temperature rise on the representative assembled connection.

Unified Thread Engagement

UNC, UNF, UNEF and UNS describe distinct Unified thread specifications. A complete callout includes nominal diameter, threads per inch and tolerance class. Internal and external thread classes must be identified correctly. Engagement length should be compatible with the stud and connector material. Specify whether the thread is through or blind. Include any relief, counterbore or seating requirement. Check the finished thread after coating when plating affects fit. Do not force a connector onto a partially matching stud.

Busbar and Cable Lug Integration

Transformer terminal palms can interface with compatible bolted lugs and busbar connections. Matching bolt centres is only one part of this assessment. The lug palm must fit within the available contact surface. Fastener length must suit the complete joint stack. Cable routing should prevent excessive bending loads on the terminal. Busbar supports should address vibration and thermal movement. Aluminium connections require a specifically approved joint system. Confirm conductor material, lug details and installation instructions together.

Material Traceability

Material identification starts with the full grade and applicable purchasing specification. A traceability plan should connect incoming material or casting heat to the finished batch. Chemical analysis is relevant when similar-looking alloys have different compositions. Inspection records should reference the order and drawing revision. Agree identification methods that do not damage contact faces. Define whether individual or batch marking is needed. The quotation should identify the documentation included and any additional testing requested by the purchaser.

Finish and Corrosion Considerations

Natural and tin-plated terminals need service-specific evaluation for humidity, contamination and dissimilar-metal contact. Tin coating can provide a controlled contact surface, but coating defects and exposed edges require consideration. Specify the plating system rather than requesting only a colour. Packaging should prevent abrasion during transport. Installation preparation must follow the equipment manufacturer’s instructions. Avoid assuming that a plated terminal is suitable for every outdoor environment. Environmental qualification should reflect the complete connector assembly and intended service.

Mechanical Fit and Service Access

Terminal geometry affects assembly access as well as electrical layout. Check spanner clearance around the hub and tool access around palm bolts. Confirm that adjacent phases, barriers and enclosure surfaces remain clear. The equipment designer must establish the necessary electrical clearances. Larger hole patterns require particular attention to support and cantilever loading. Include any space restrictions with the enquiry. Clear dimensional requirements help reduce installation rework and support repeatable fit across production batches.

Technical Specifications

Raw Material Grades and Principal Composition

These principal-element ranges are identification guidance, not a complete acceptance specification. Apply all impurity limits, composition notes, product-form requirements and test conditions in the ordered material standard. C11000 is not a cast bronze grade. Material properties must correspond to the actual form and condition supplied.

International Designation and Equivalent-Material Guide

For international tenders, submit the proposed local grade and its specification. Similar nominal chemistry does not guarantee equivalent conductivity, mechanical properties or inspection requirements. Written substitution approval should precede production.

Product Types and Variants

Listed combinations define the product range; individual dimensions and production availability are confirmed against the enquiry. Odd-hole or asymmetric arrangements require explicit drawing review.

Industrial Applications

Manufacturing Process and Inspection Planning

The manufacturing route depends on the alloy, geometry and order requirements. Cast-alloy connectors and wrought-copper parts need different starting forms. The following sequence provides a basis for agreeing the production and inspection plan; the quotation should confirm the operations and records included.

1. Drawing review: establish material, palm pattern, thread callout, datums and acceptance criteria.
2. Material preparation: select the specified casting or wrought stock route and identify the material batch.
3. Blank production: produce a suitable casting or prepare a wrought blank with machining allowances.
4. Machining: finish contact faces, hub features and hole locations to the approved dimensions.
5. Thread cutting: machine the specified thread and verify engagement and fit using the agreed gauges.
6. Finishing: deburr, clean and apply tin plating where ordered; protect critical surfaces.
7. Final inspection: verify dimensions, finish and identification against the inspection plan before packing.

Quality Standards and Certification Requirements

Listing a reference standard does not claim that every variant is certified to it. NEMA-spaced geometry does not constitute NEMA product certification. No universal current rating, UL listing or company certification is asserted for this range. Specify any qualification testing and compliance documents required by your project.

Why Choose Cable Glands India for This Product?

This range brings multiple palm configurations, four stated material options and two finish choices into one drawing-based enquiry. Buyers can define the connector around the required bushing interface rather than selecting only by a generic product name. The published US$ 18/kg rate gives a clear starting point for commercial discussion. Compare quotations using the same alloy, finished weight, coating and inspection scope. For repeat procurement, retain the approved drawing, sample acceptance record and configuration description with the purchase order.
