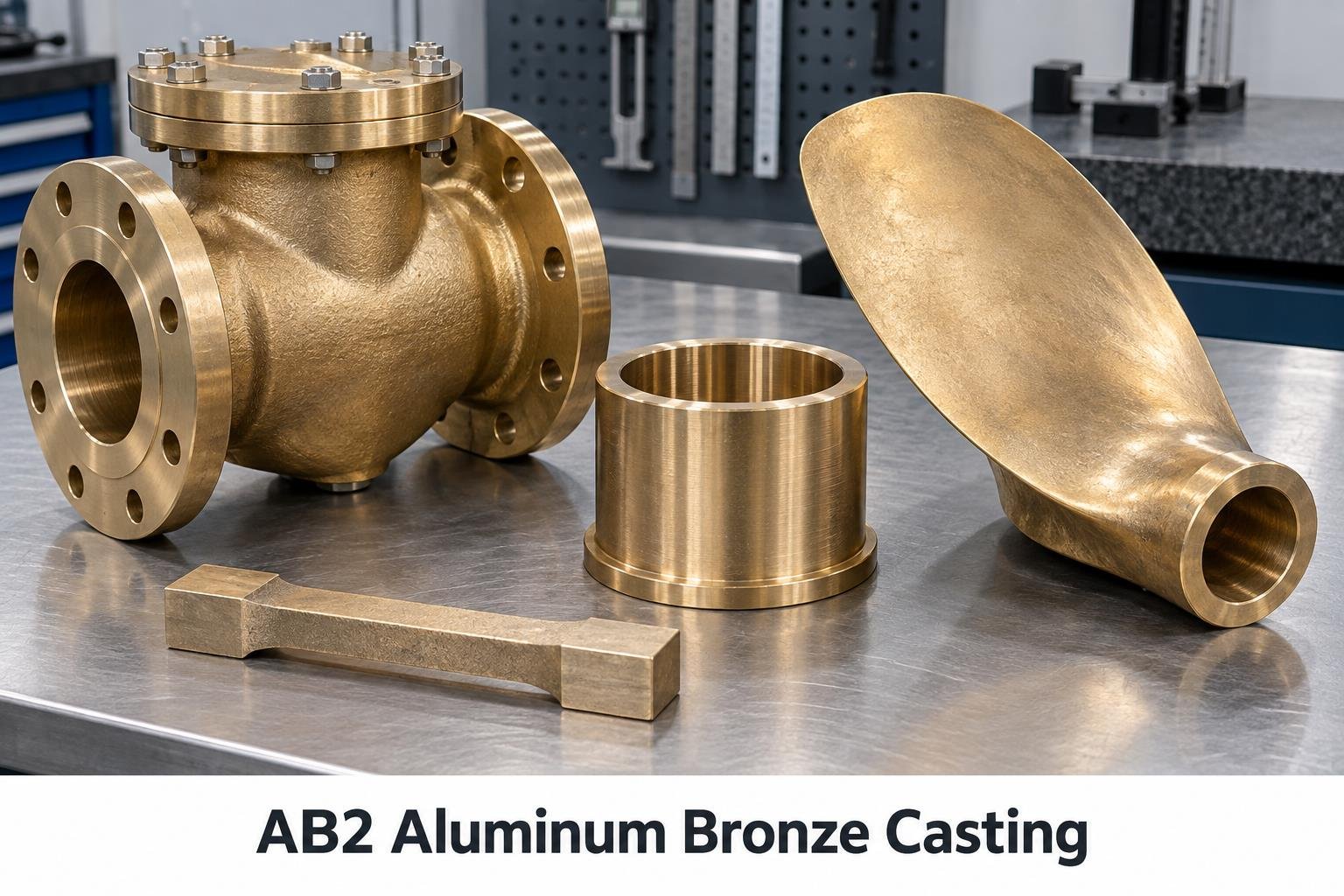

AB2 Aluminum Bronze Casting

Price: US$ 19.00/kg

AB2 Aluminum Bronze Casting from Brass Parts India covers AB2 aluminum bronze castings for marine, pump, valve and demanding corrosion-wear service subject to drawing approval. The specified material is AB2 / nickel aluminum bronze, a nickel aluminum bronze grade supplied as drawing-based castings, rough-machined blanks or finish-machined components. Target buyers include electrical OEMs, EPC contractors, power utilities, pump and valve manufacturers, marine equipment builders and industrial distributors. Quote review connects alloy condition, casting route, section thickness, machining allowance, inspection and service environment. The listed product rate is US$ 19.00/kg; tooling, machining, testing, packing and freight are confirmed against the drawing and quantity.

The listed kilogram rate is the product reference price. Confirm chargeable weight, tooling, machining, finishing, testing, packing and delivery terms in the quotation.

Detailed product overview

Material identity and purchasing designation

Aluminum bronze is a copper-based alloy family in which aluminum is the principal alloying addition. It is not an aluminum-base casting alloy. Iron and, for nickel aluminum bronze, nickel help define the grade. Select the material using the actual service loading, environment and required delivery condition. State the standard designation and required supply condition on both the enquiry and the purchase order. The description should remain consistent across the drawing, quotation, material certificate and inspection record. This avoids a technically different alloy being accepted because its commercial name sounds similar.

Wear rings and bearing sleeves

The correct bronze depends on the mating material, load, sliding speed, lubrication and operating clearance. Hardness alone does not establish suitability for a bearing. Specify the counterface and running diameter separately from the as-cast envelope. For hot equipment, differential expansion must be considered when setting cold clearances. Abrasive contamination, poor lubrication and misalignment require design controls rather than a simple alloy change.

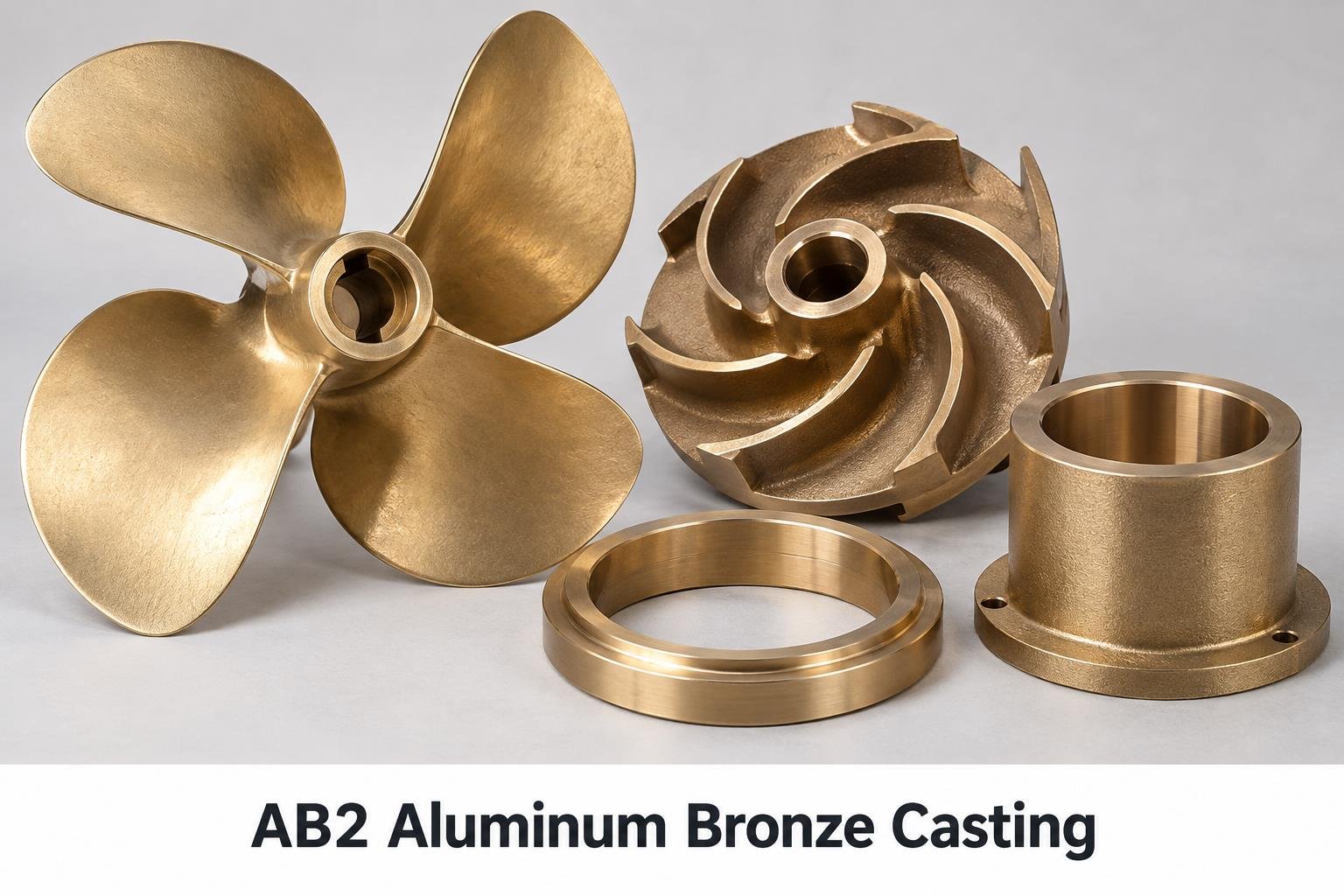

Marine pump and valve components

Nickel aluminum bronze is considered for marine equipment, but seawater suitability depends on chemistry, microstructure, water conditions and contact with other metals. Mark the critical zones on pump bodies and impellers. State any metallographic examination, pressure testing, repair restrictions and specified heat treatment before production. The word marine is not a certification and does not define a universal corrosion life.

Heat treatment and machining sequence

Treatment requirements vary with grade and service specification. Agree the material condition before planning rough and finish machining. Rings, long bushes and thin flanges need allowance for distortion and datum recovery. A component with both a wear face and a pressure wall must preserve minimum section thickness after its final machining operations.

Key features and engineering requirements

• Drawing-defined ab2 aluminum bronze castings with an identified alloy specification.
• Process selection matched to geometry, cores, section thickness and order quantity.
• Defined machining stock for bores, threads, mounting faces and sealing interfaces.
• Inspection requirements linked to component function and critical zones.
• Material identification and documentation specified with the purchase order.
• Supply condition, surface finish and packing agreed before production.

Machining allowance and datum strategy

Machining stock must cover casting variation without adding unnecessary weight or cutting time. Define allowances by surface rather than applying one blanket value to the whole component. A bore and an external flange may need different allowances. Establish how the first machining operation locates the casting, then how subsequent operations preserve the datum relationship. For cored components, check minimum wall thickness after machining. Stock allowance is a process-design decision and should be agreed before the pattern or permanent tool is finalized.

Surface condition and defect acceptance

As-cast texture, gate-removal marks and parting lines differ from machined surface roughness. Identify visible areas, functional areas and surfaces that will be covered during assembly. Specify acceptable dressing and whether weld repair, impregnation or other corrective work is allowed. Inspection should distinguish harmless surface texture from defects affecting strength, leakage or fit. A reference sample can support an appearance requirement, but it should supplement measurable criteria and a documented agreement about critical surfaces and permissible repair.

Threads, fits and mating components

The finished component must fit the mating assembly, not merely match its own isolated dimensions. Specify thread standard, pitch, tolerance class and usable engagement length. State fit requirements for shafts, bushes and locating pins. Where a coating is applied, clarify whether dimensions are measured before or after finishing. Chamfers and edge breaks should support safe assembly without reducing sealing land or contact area. Provide the mating-part information needed to review tool access, assembly sequence and inspection-gauge selection.

Heat treatment and property verification

Heat treatment is grade-dependent and should be specified only where it is required by the alloy standard or component design. Define the delivery condition and associated testing rather than requesting a generic treatment for all copper alloys. A separately cast test coupon may not represent every local section of a complex component. Agree the sampling arrangement and any supplementary verification. Hardness, tensile properties, conductivity and metallography answer different questions and should be selected according to the function of the supplied casting.

Technical specifications

Raw material grades

International equivalents and related designations

These references support alloy comparison. They are not blanket approvals to substitute material. Check the current standard edition, chemical limits, casting method, delivery condition and test requirements before accepting an alternative.

Product types and variants

Applications in industry

Application selection for aluminum bronze should begin with wear resistance, mechanical loading and corrosion exposure. The component examples describe enquiry categories rather than a guaranteed rating or blanket suitability. The equipment designer remains responsible for the complete assembly, including loads, temperature, fluid compatibility and installation conditions.

Manufacturing process and casting methods

The production route is chosen after reviewing the material, geometry and order. The methods below are alternatives to assess; their inclusion does not mean every method is appropriate or available for every grade and part.

From drawing review to casting

The planned sequence begins with drawing review, alloy confirmation and process selection. Pattern or tool design establishes the parting arrangement, cores, draft and machining stock. Melt preparation and handling must preserve the required composition. Gating and feeding are planned around section changes and solidification behaviour. After pouring and cooling, the casting is removed from its mold, gates and risers are cut away, and the surface is cleaned. Each stage should support the agreed final acceptance criteria.

Secondary operations and release

Following cleaning, any specified treatment is completed in the agreed sequence. Rough machining can establish reference surfaces before critical features are finished. Inspection then checks dimensions, material identity and the functional tests required by the order. The supplier and purchaser should agree first-article approval before repeat production where the program requires it. Final release connects the accepted part to its documentation, marking and packaging. Changes to material, tooling, process or drawing revision should be reviewed before subsequent deliveries.

Quality standards and certification requirements

Specify the applicable standard and its edition in the purchase order. ASTM B584 addresses copper-alloy sand castings for general applications; ASTM B148 addresses aluminum-bronze sand castings; ASTM B271/B271M concerns copper-base centrifugal castings. EN 1982 provides a European framework for copper and copper-alloy ingots and castings. The selected standard must cover the actual alloy and product form.

Where requested, define the material inspection document, including any EN 10204 requirement, together with sampling and traceability. Dimensional inspection, chemical analysis, pressure testing and nondestructive examination are separate requirements. Request applicable current quality-system certificates and their scope during supplier qualification. This page does not claim that every casting is certified to every named standard, nor does a quality-system certificate replace product-specific acceptance evidence.

Why choose Brass Parts India

Use Brass Parts India as the enquiry point for a defined casting component rather than an unspecified metal shape. A useful technical quotation connects the alloy, drawing revision, production route, supply condition and inspection requirements. This makes it easier for purchasing and engineering teams to compare proposals on the same basis and identify exclusions before an order is placed.

For repeat supply, retain the approved first article, material specification and inspection plan as the purchasing reference. Discuss proposed substitutions or process changes before release. Request evidence for any capability, certification or special test that is essential to your project. Clear requirements and documented acceptance provide a more reliable basis for supplier selection than an unsupported general performance claim.
