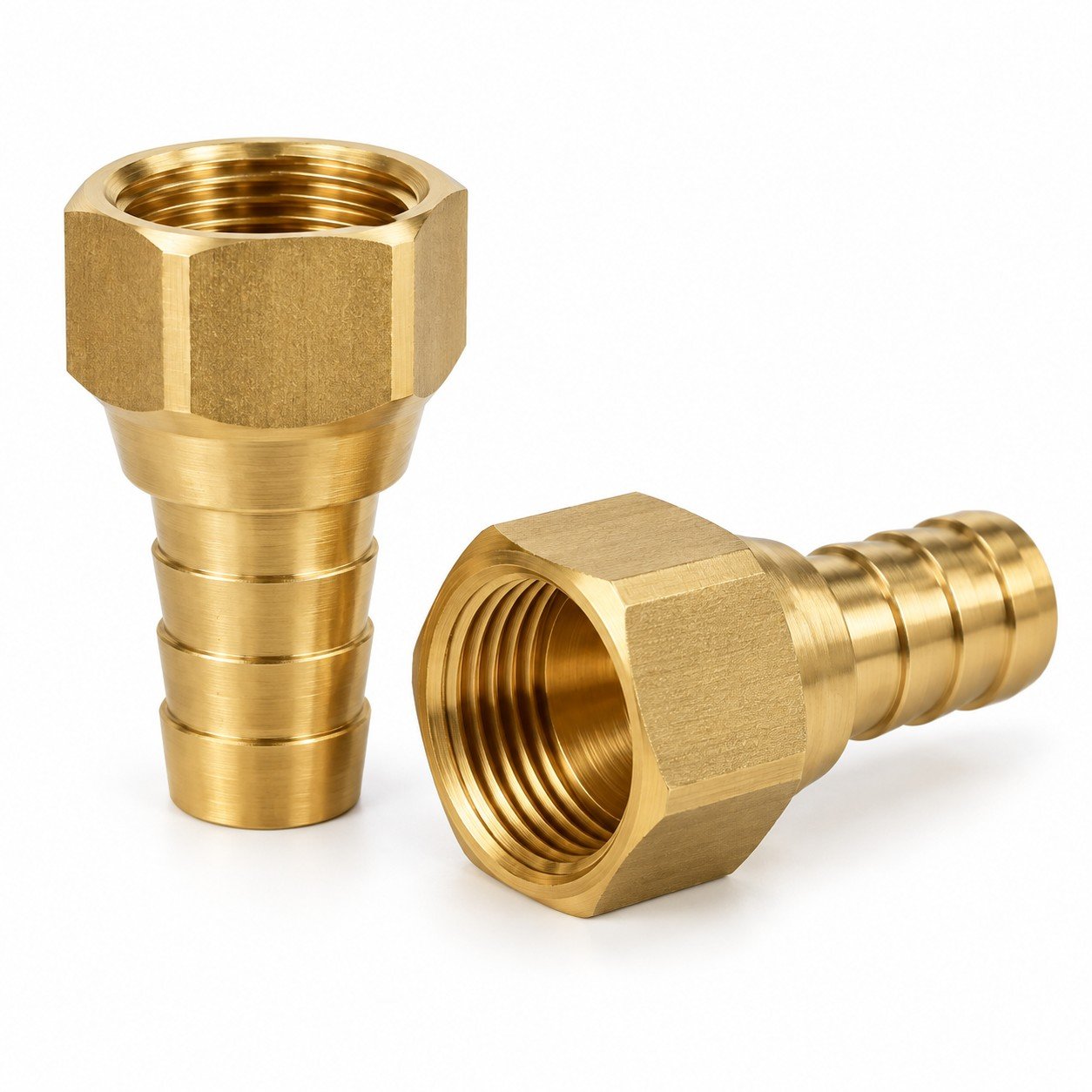

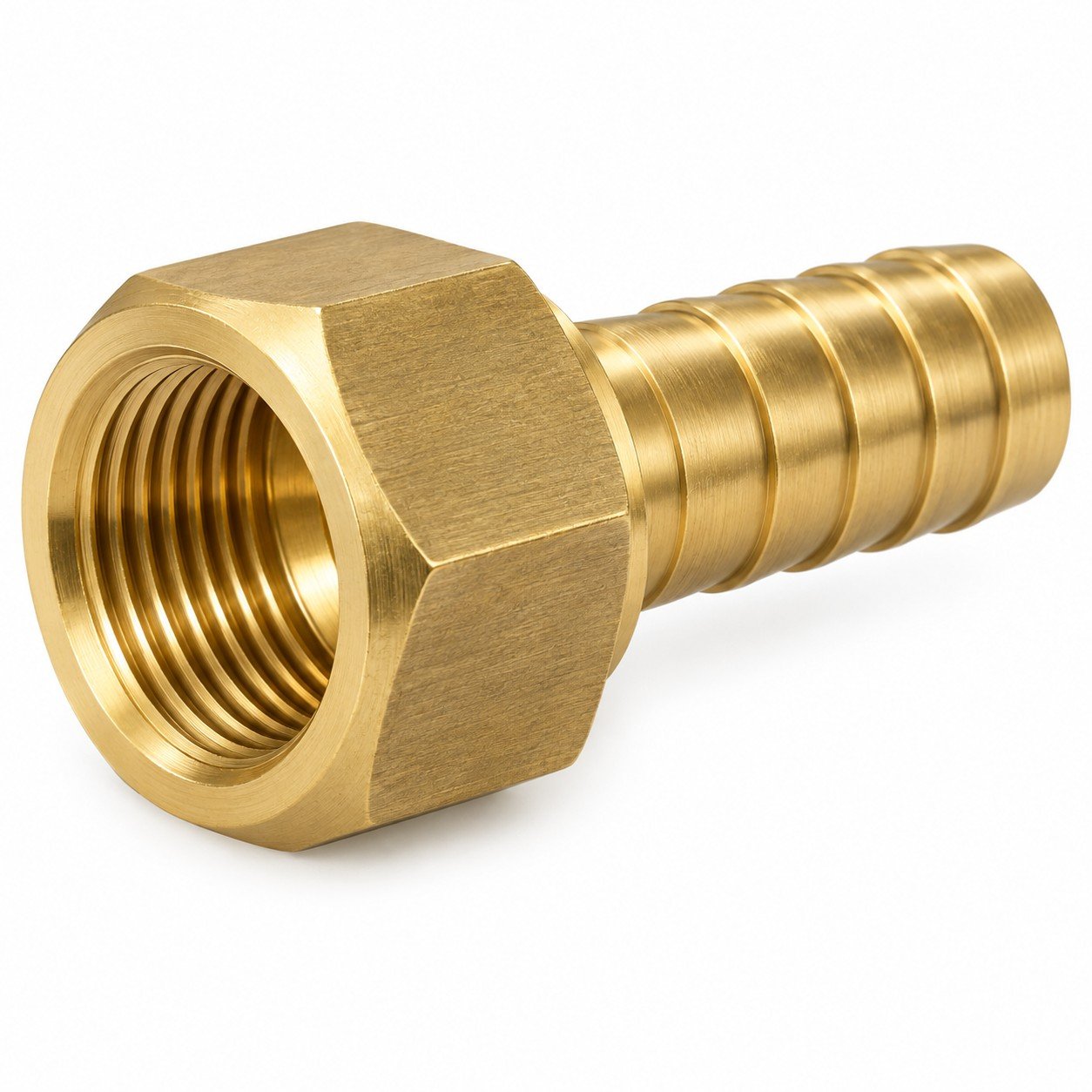

Brass Female NPT-NPTF Hose Nipples

Brand: Cable Glands india | Price: US$ 16.00/Kg

Brass Female NPT-NPTF Hose Nipples connect flexible hose to a male threaded equipment outlet through a female pipe-thread socket and a barbed hose stem. Cable Glands india offers female NPT and female NPTF as separately specified variants for OEM assemblies, EPC packages, utilities and distributors. The title identifies two options; it does not describe one universal thread. Match the female socket to the mating male connection and select the hose stem independently. The listed product price is US$ 16.00/Kg.

Explore Brass Hose Barbs & Nipples

Detailed product overview

Female sockets for male equipment outlets

The female hose nipple receives a male threaded connection on a valve, pipe nipple, manifold outlet or service component. Its body surrounds the internal thread and transitions to a barbed stem for the hose. This configuration can simplify a connection where the equipment already presents an external thread. The hexagonal body provides wrench access, but its dimensions must leave adequate wall around the socket. Include the male outlet projection and nearby equipment clearances in the installation review. An internally threaded hose nipple should not be confused with a hose mender.

NPT and NPTF are separate ordered variants

The female NPT option follows the general-purpose pipe-thread system, while the female NPTF option follows the dryseal system. Order the required version explicitly. The combined product family name is useful for navigation but should never appear as an ambiguous thread callout on a manufacturing drawing. Identify the mating male thread and the approved sealing procedure. A dryseal designation does not establish compatibility with every male NPT part. Keep the two variants under distinct part numbers where both are stocked for production or maintenance.

Socket depth and internal clearance

Female thread engagement must be considered together with the internal shoulder and minimum flow passage. A mating male component can bottom against a shoulder before the intended thread engagement is achieved if the geometry is poorly coordinated. Specify useful thread length, overall socket depth and any relief or lead-in needed by the design. Inspect the assembled envelope when the male component has a long projection. More tightening is not a remedy for mechanical bottoming. The drawing should give sufficient information to separate sealing engagement from accidental end contact.

Wall thickness and wrenching loads

The socket body carries the wedging loads generated by a tapered male thread. Body thickness, alloy condition, thread depth and installation practice therefore matter. Use the hexagon to hold or tighten the fitting and avoid clamping across the hose stem. Over-tightening can damage a female socket even when the threaded components initially fit. Where the mating part is a different metal, review material behavior and corrosion exposure. A general brass grade or nominal thread size alone is insufficient to specify a universal installation torque.

Hose assembly sequence and routing

Installation planning should determine whether the nipple is tightened before the hose is fitted or whether the system permits another approved sequence. Twisting an attached hose to rotate the threaded body can load the hose wall and disturb retention hardware. Provide access to the hexagon and position the hose so its bend starts beyond the supported stem. Do not describe a fixed female nipple as a swivel connection. If rotation is required during service or installation, request a separately designed swivel arrangement with its own sealing and qualification requirements.

Inspection access and repeatable identification

Internal threads require appropriate inspection tools and a clean, visible socket entrance. Define the female thread standard, size and inspection class where relevant. Check for burrs or chips at the thread runout and bore transition, since contamination can be trapped inside the body. Packing should protect both the socket and hose stem. For distributor supply, label the female NPT and female NPTF versions distinctly and add the hose diameter. A traceable drawing revision helps maintenance teams replace the intended variant without relying on external appearance.

Key features

• Specified female tapered NPT or NPTF connection
• Machined brass body with defined wrenching surfaces
• Barbed hose stem selected for the actual hose construction
• Bore, engagement length and finish controlled by drawing
• Material and inspection documentation agreed with the order
• Standard-family and custom configurations subject to quotation

Female socket identification

Identify the thread family, size and required inspection on the purchase drawing. A controlled connection definition makes receiving inspection and assembly more consistent. Keep mating-port details with the fitting specification so replacement orders retain the same interface. Where the thread is coated, state the finished condition in which acceptance applies. Gauge results should be interpreted using the selected standard rather than a visual comparison with an unrelated adapter. Preserve the approved part reference on packing labels and delivery documentation.

Internal thread inspection

Hose selection begins with inside diameter, wall construction, hardness and the manufacturer’s fitting guidance. Nominal hose size alone does not define insertion force or pull-off resistance. Match the stem and retention method to the actual hose sample, particularly when changing suppliers. Clamp width and position should suit the supported portion of the stem. A qualified combination can then be recorded as an assembly specification. Any later change to hose material, clamp type or barb geometry should trigger a review of that combination.

Socket wall and engagement control

Critical metal dimensions include the wrenching envelope, minimum wall, connection length and bore transitions. Specify tolerances according to function rather than applying an unnecessarily tight tolerance to every surface. Check that the assembled fitting leaves room for tools and surrounding hoses. The approved drawing should identify inspection datums and finished dimensions. This supports meaningful first-article review and prevents a cosmetic dimension from obscuring an important fit requirement. Packaging should protect the surfaces used for sealing, retention and dimensional verification.

Fixed-body installation access

Machined passages should be free from loose chips and damaging burrs. The required cleanliness level depends on downstream equipment and the service medium. Small pneumatic valves and control passages may need a more explicit cleanliness requirement than general water-transfer equipment. Agree any washing, drying, particle inspection or protective capping requirement in the quotation. Evaluate leakage and retention on the completed hose assembly using an appropriate procedure. Do not infer a working-pressure rating from the fitting’s appearance, material description or heavy-duty label.

Separate NPT and NPTF variants

Natural brass, nickel and chrome finishes require different procurement details. A coating changes surface dimensions and may affect hose insertion, thread engagement or compatibility with the fluid. Specify the finish, relevant thickness and acceptance condition where coating is required. Sealants and installation lubricants must also be selected for the application. The completed connection should remain accessible for inspection and maintenance. Document the approved assembly sequence, replacement criteria and any restrictions on reusing the fitting after service.

Technical specifications

Raw material grades

The following are material options for technical review, not a declaration that every grade is stocked in every size. State the required material standard and supply condition. Lead content, corrosion behavior and manufacturing route must suit the final application.

International equivalents and sourcing comparisons

An equivalent trade description is not sufficient evidence of full interchangeability. The relationships below distinguish designation references from approximate alternatives. The approved drawing and certificate govern acceptance; do not substitute based solely on a catalog cross-reference.

Product types and variants

These are fixed female threaded hose nipples unless an approved drawing specifies otherwise. They are not automatically swivel hose connectors, garden hose female fittings or compression adapters. Confirm the male thread standard and sealing method. A product described as female NPT-NPTF in a catalog still needs a single, unambiguous thread specification for each ordered part.

Applications in industry

Application examples identify possible uses after engineering approval. They do not assign suitability for hazardous fluids, high-pressure hydraulics, fuel gas or critical safety systems. Assess fluid compatibility, pressure cycling, external loading and hose retention for the actual equipment. Electrical OEMs should integrate the fluid connection into their machine risk and maintenance review.

Manufacturing process

Drawing review and material preparation

Manufacturing starts with an agreed drawing and inspection plan. The review establishes thread identity, hose geometry, minimum bore, material condition and finish. Suitable rod or bar can be prepared for machining; a forging route may be considered when the design and selected alloy justify it. Material identification should remain associated with the production batch. A change in stock form or grade requires review against the accepted specification.

Machining, threading and finishing

Turning forms the hose stem, shoulders and body features, while drilling or boring produces the flow passage. The threaded end is machined with tooling appropriate to the specified connection. Deburring removes loose edges at the entry, barb transitions and bore exits. Cleaning precedes any agreed coating operation. Finished dimensions and thread acceptance must account for the surface treatment so that a compliant uncoated blank does not become an unacceptable finished fitting.

Inspection, packing and release

Inspect critical dimensions and threads using the agreed methods. Where performance testing is specified, define the test medium, procedure, sample plan and acceptance criteria before production. Protect machined connections during packing and identify the part number and revision on the shipment. Retain the agreed inspection evidence for customer review. Assembly qualification uses the intended hose and retention hardware; checking the bare metal fitting alone cannot establish complete hose connection performance.

Quality standards and certifications

References to standards describe requirements that may be specified; they are not claims of third-party certification. Confirm required certificates during procurement. Do not infer potable-water, food-contact, oxygen-service, pressure-equipment or hazardous-area approval from the product family name. Documentation and any special tests must be expressly included in the accepted order.

Why choose Cable Glands india

Use Cable Glands india as a sourcing contact for a clearly specified brass hose connection. A useful industrial quotation connects the drawing, material, thread system, hose requirement and inspection scope to the ordered part. This makes technical comparisons more meaningful than comparing nominal size and price alone. OEMs can submit repeat-production requirements, while EPC buyers can include project documentation and destination conditions. Distributors should request consistent variant identification and packaging details for their inventories.

The product information supports a practical engineering review: select the correct interface, check the hose assembly and confirm documentation before order release. The listed kilogram price gives a common commercial reference, while finished-part mass determines the material-weight basis for a particular configuration. Discuss custom geometry, surface treatment and testing in the same inquiry so the quotation describes the required supply rather than an assumed generic fitting.

Frequently asked questions

What does this product connect?

Brass Female NPT-NPTF Hose Nipples connect a compatible flexible hose to a female tapered NPT or NPTF pipe-thread interface. The hose stem and threaded end must each match their mating component. Specify both connection sizes and the intended assembly method.

Which thread standard should I specify?

Use ASME B1.20.1 (NPT) / ASME B1.20.3 (NPTF) for the relevant Female NPT / NPTF variant. Include nominal size and any required class or inspection details. Similar appearance or partial engagement does not establish interchangeability with another thread system.

How do I choose the hose size?

Use the actual hose inside diameter, construction and manufacturer’s fitting recommendations. Confirm the barb geometry and retention hardware with the intended hose. A pipe-thread size does not directly specify the hose bore.

Is a hose clamp required?

Use the retention method specified for the qualified hose assembly. This may involve a suitable clamp or ferrule. A push-on arrangement is acceptable only where the hose and fitting system is explicitly designed and approved for that method.

What are the pressure and temperature ratings?

The complete hose assembly determines operating limits. Provide working pressure, transients, temperature, fluid and duty cycle for review. No universal pressure or temperature rating is assigned to every size, alloy and hose combination on this page.

Can these fittings be used for drinking water or food service?

Only select a configuration supported by the required finished-product approvals and material documentation. A brass designation, low lead content or food-grade hose alone does not establish approval of the complete fitting and assembly.

Are the brass grades internationally interchangeable?

The comparison table supports initial sourcing discussions. It does not authorize substitution. Check chemistry, product form, temper, mechanical properties and corrosion requirements against the drawing and material certificate before accepting another designation.

Can I order a custom hose stem or finish?

Submit a dimensioned drawing with thread, hose details, bore, lengths, hexagon, alloy and finish. Feasibility, tooling, inspection documents, minimum order quantity and delivery schedule are confirmed through the quotation.

What is the listed price and quotation basis?

The listed price is US$ 16.00/Kg. State quantity, estimated finished-part mass and delivery destination when requesting an order quotation. Confirm the scope for finishing, testing, packaging, freight and taxes before purchase.

Which documents should accompany an industrial order?

Request the material certificate, dimensional report, thread inspection evidence and any agreed assembly test records. If a project requires a current third-party certificate, confirm its scope and applicability to the ordered product before approval.

Equivalent terms in international purchasing

These commercial equivalents assist multilingual inquiries. Retain the exact thread designation and drawing dimensions when translating an order; regional terminology alone does not define a connection standard.

Linked parts and related products

• Brass Hose Barbs & Nipples
• Brass NPT Hose Barbs
• Brass NPTF Hose Barbs
• Brass BSPT Hose Tails – Hose Nipples
• Brass Hose Fittings
• Hose Menders, Connectors and Splices
• Fluid Power Accessories and Components
• Pneumatic Fittings and Air Accessories

Request a technical quotation

Send the drawing or dimensioned requirement, thread type and size, hose specification, fluid, pressure, temperature, quantity, material grade and finish. Include inspection documents and delivery destination. Cable Glands india can review the required configuration and confirm the order scope, lead time and commercial terms. Listed price: US$ 16.00/Kg. Contact the sales team through the internal inquiry page to discuss your OEM, EPC, utility or distributor requirement.

Request a quotation for Brass Female NPT-NPTF Hose Nipples
